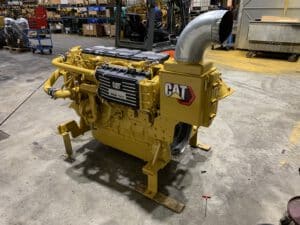

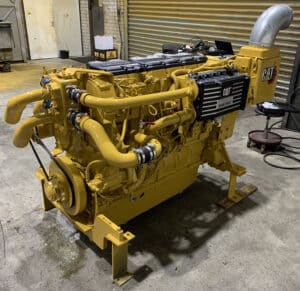

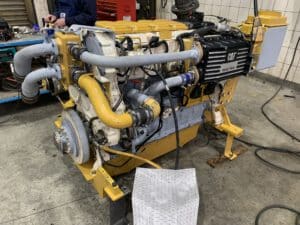

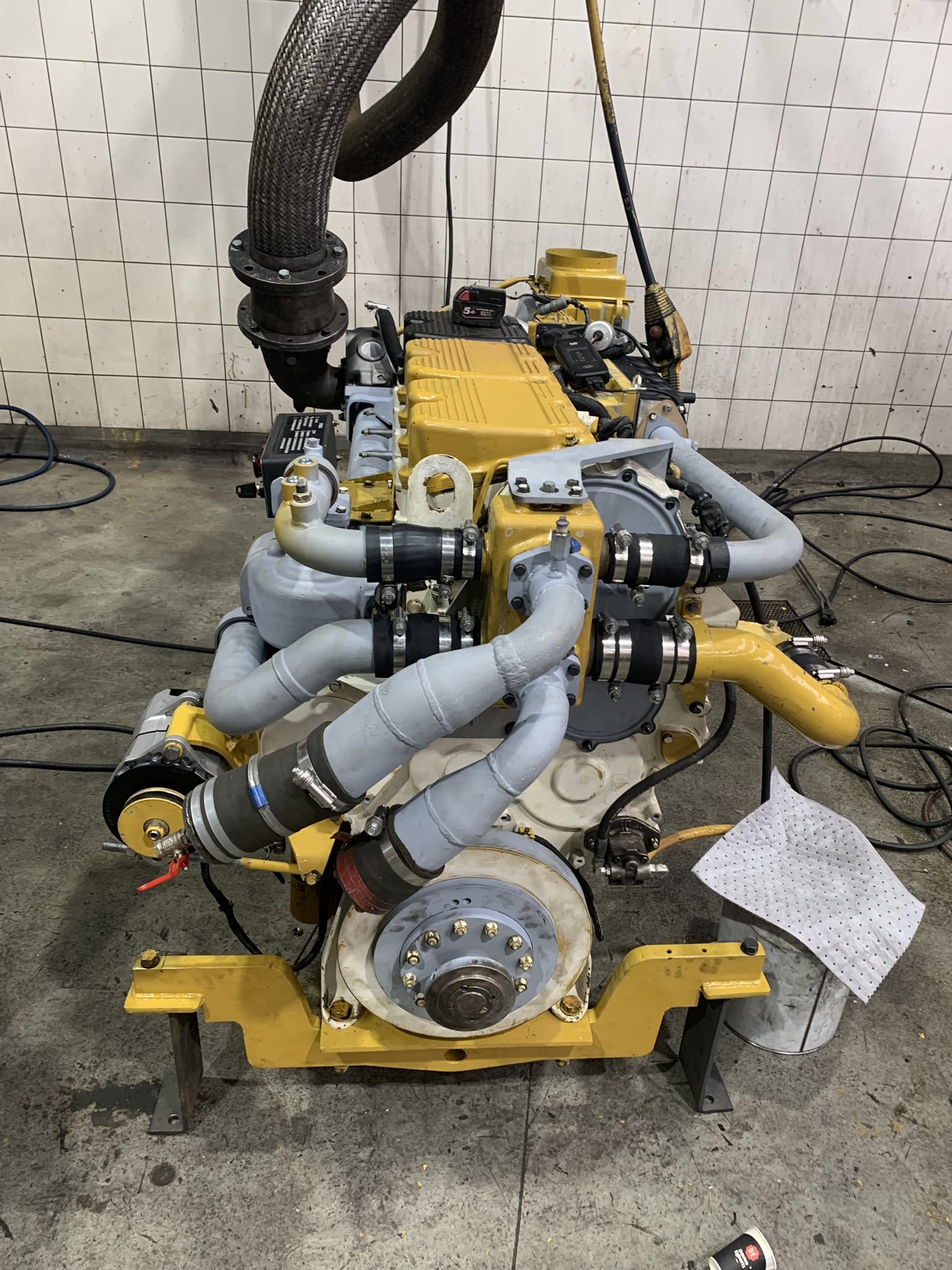

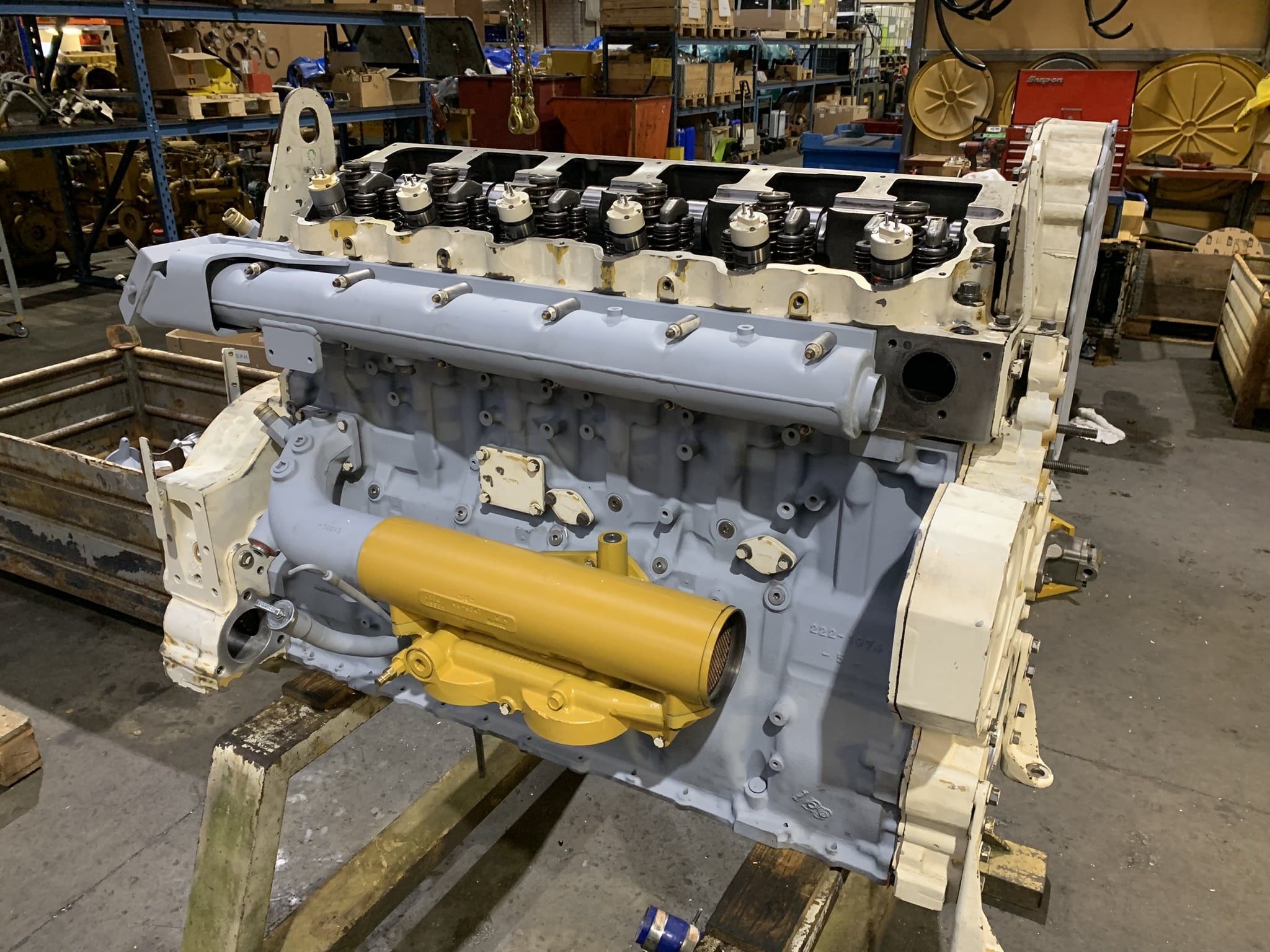

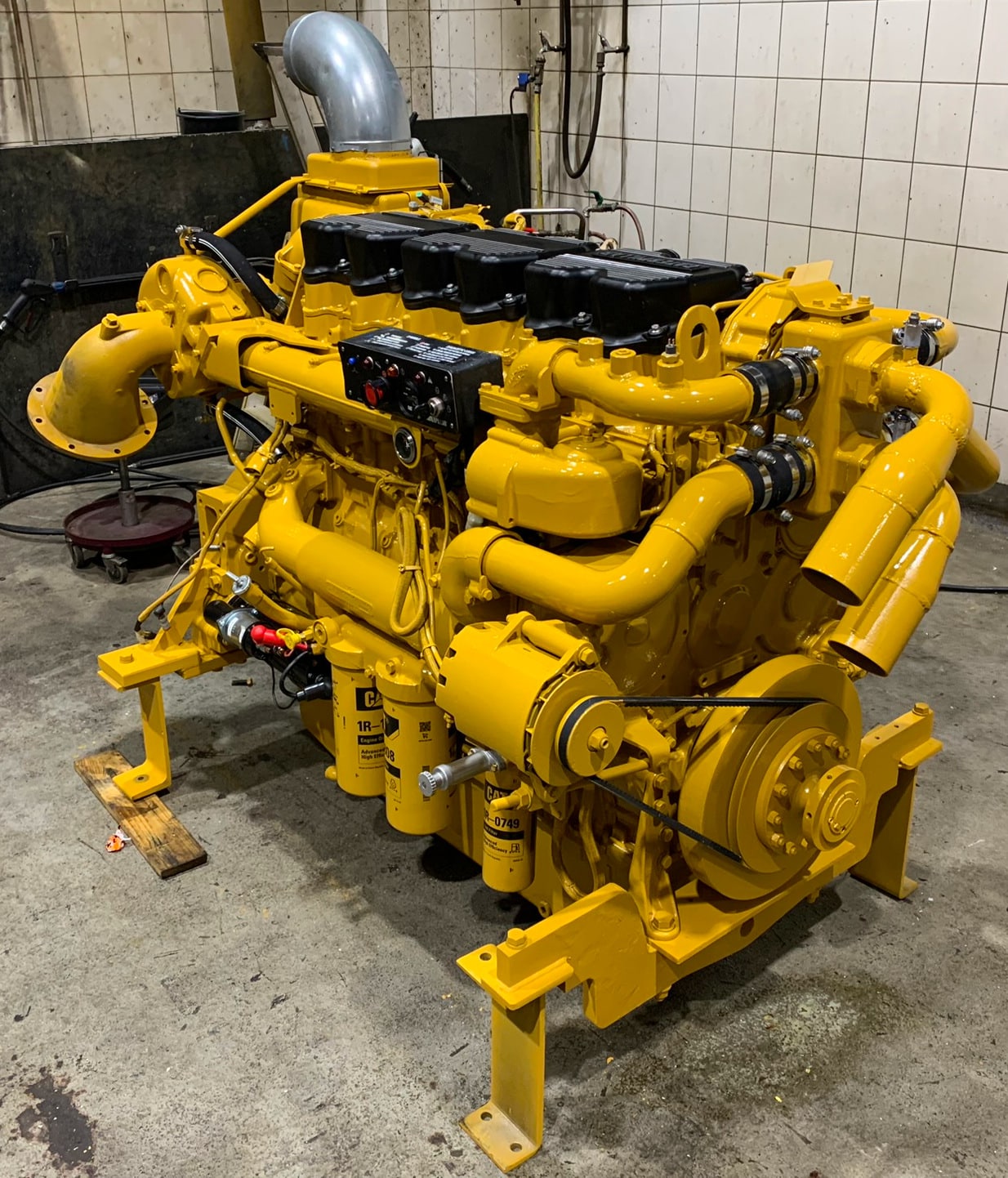

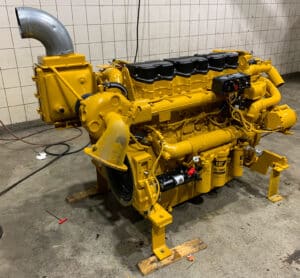

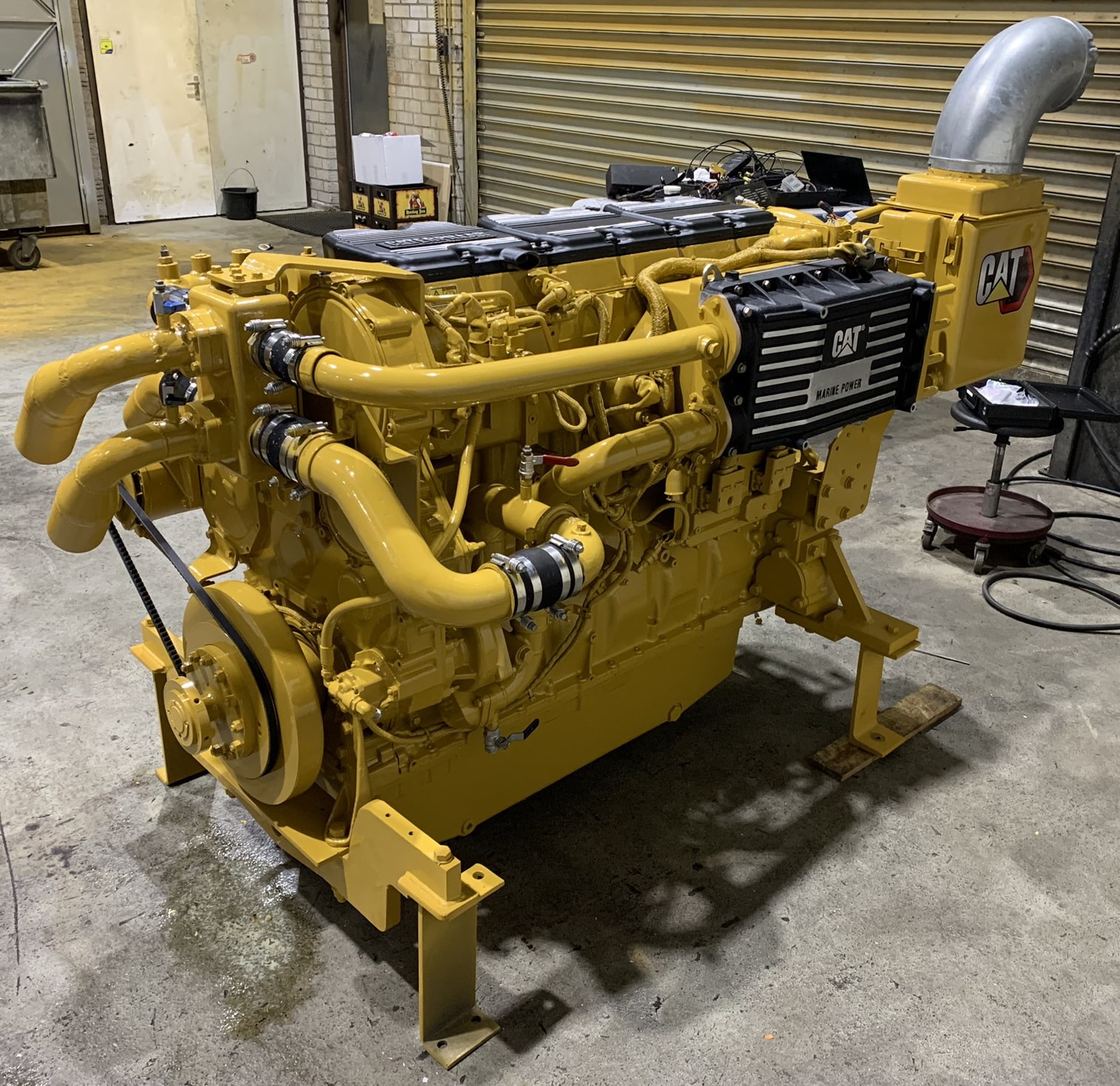

Diesel Power Holland completed the full rebuild of a Caterpillar C18 DITA marine propulsion engine for a marine customer — one of many demanding C18 marine projects executed in our specialised workshop in Moerdijk, Netherlands. This specific unit carries the C1J engine prefix, is rated at 600 HP (447 kW) at 1,800 rpm, and is configured with a deep sump oil pan and keel cooling — a setup typical of workboats, tugs, and inland waterway vessels operating in environments where raw water cooling is impractical. The complete rebuild was carried out to Caterpillar factory standards using new and original reusable Caterpillar parts.

What Is the Caterpillar C18 DITA?

The Caterpillar C18 DITA is the turbocharged and aftercooled variant of Caterpillar’s 18.1-litre, 6-cylinder in-line diesel engine. The designation DITA stands for Direct Injection Turbocharged Aftercooled — describing the engine’s core technology:

• Direct Injection (DI) — fuel is injected directly into the combustion chamber, maximising combustion efficiency and fuel economy
• Turbocharged (T) — a turbocharger forces additional air into the cylinders, significantly increasing power output relative to engine displacement
• Aftercooled (A) — compressed air from the turbocharger is cooled before entering the cylinders, increasing air density for more complete combustion and reducing thermal stress on engine components

Together, these technologies make the C18 DITA a high-efficiency, high-output engine capable of sustained performance in the demanding conditions of commercial marine propulsion. In the C1J marine propulsion rating, the C18 DITA delivers 600 HP (447 kW) at 1,800 rpm — an output well suited to a wide range of workboat and commercial vessel types.

Project Details: C18 DITA Marine Propulsion Rebuild

This rebuild was carried out to the following factory specification:

• Engine model: Caterpillar C18 DITA
• Engine prefix: C1J
• Application: Marine propulsion
• Power output: 600 HP (447 kW)
• Rated speed: 1,800 rpm
• Arrangement number: 241-9635
• Oil pan: Deep sump
• Cooling system: Keel cooled
• Rebuild standard: Full rebuild to Caterpillar procedures using new and reusable original CAT parts

What Does keel cooling mean on a Marine Engine?

Keel cooling is a closed-loop engine cooling system in which the engine coolant — typically a water/antifreeze mixture — circulates through external pipes or channels mounted on the underside of the vessel’s hull (the keel area), where heat is dissipated directly into the surrounding water. Unlike open-circuit raw water cooling, no sea water, river water, or harbour water enters the engine cooling system.

This makes keel cooling the preferred choice for vessels operating in environments where raw water intake is problematic:

• Inland waterways and rivers — where debris, silt, and shallow depths can block or damage raw water impellers and strainers
• Harbours and ports — where polluted or biologically active water can accelerate corrosion of internal cooling passages
• Arctic or cold-climate operations — where raw water systems risk freezing or ice ingestion
• Shallow-draft workboats and tugs — where hull penetrations for sea cocks are undesirable or impractical

Because the cooling circuit is closed, a keel-cooled engine experiences far less internal corrosion, less scale build-up, and longer component service life — a significant long-term maintenance advantage for vessel operators.

During a keel-cooled C18 rebuild, the closed cooling circuit interfaces, thermostat housing, coolant pump, and heat exchanger connections all require careful inspection and restoration as part of the overall scope, which Diesel Power Holland addresses as standard practice.

Deep Sump Oil Pan: Why It Matters for Marine Propulsion

The deep sump oil pan fitted to this C18 DITA configuration provides a larger oil reservoir than a standard sump. In marine propulsion applications, this is essential for two reasons. First, vessels — particularly workboats and tugs — frequently operate at significant angles of trim and heel, which can cause a standard sump to expose the oil pickup and starve the engine of lubrication. A deep sump ensures the oil pickup remains submerged even during sustained list or pitch. Second, the greater oil volume provides improved thermal stability and extends oil change intervals under continuous heavy-duty operation.

The arrangement number 241-9635 identifies the precise assembly configuration of this C18 DITA, including the deep sump and keel cooling provisions, and is used to ensure correct parts sourcing during rebuild.

The C1J Engine Prefix: What it identifies

The C1J prefix is Caterpillar’s serial number identifier for this specific C18 marine propulsion configuration. Each Caterpillar engine prefix encodes the engine family, application type, power rating, and cooling variant. For marine operators and engine repair specialists, the prefix is the most reliable way to identify the exact specification of an engine and source the correct parts and documentation. When requesting a rebuild or spare parts for your C18 marine propulsion engine, always reference the engine prefix alongside the arrangement number to ensure an exact match.

Applications: Where the CAT C18 DITA Marine Propulsion Engine Is Used

At 600 HP with keel cooling and a deep sump, this C18 DITA configuration is purpose-built for commercial workboat applications. Typical vessels include:

• River and inland push boats and barges — where keel cooling is standard and continuous operation at variable throttle is the norm
• Commercial tugboats — harbour tugs and coastal tugs requiring reliable high-torque output in confined, debris-filled waters
• Fishing vessels — where corrosion resistance and low-maintenance cooling systems reduce total cost of ownership
• Survey and patrol vessels — requiring dependable propulsion in shallow or environmentally sensitive areas
• Small ferries and water taxis — keel cooled for clean, quiet, low-maintenance operation in port environments
• Dredge support vessels — where muddy, abrasive raw water makes closed-circuit cooling essential

Why choose Diesel Power Holland for your C18 DITA Marine Rebuild?

Marine operators choose Diesel Power Holland for Caterpillar C18 DITA propulsion engine rebuilds because we understand the specific demands of marine propulsion — not just the engine, but the full system context in which it operates. Our advantages:

• Marine propulsion expertise — we rebuild C18 marine engines across all prefix variants and cooling configurations, including keel cooled, heat exchanger cooled, and raw water cooled setups
• Customer-specific builds — we rebuild to your arrangement number and vessel specification, ensuring correct sump, cooling, and power configuration
• Fast turnaround — rapid availability of C18 parts from our stock of over 1,000,000 components keeps your vessel’s off-hire time to a minimum
• All original or approved parts — every rebuild uses new or reusable original Caterpillar components, verified against OEM specifications
• Global shipping — from Moerdijk, Netherlands, we deliver rebuilt engines worldwide with full export documentation
• Experience since 1976 — nearly five decades of marine engine expertise, with customers in over 100 countries

Request a Caterpillar C18 DITA Marine Propulsion Rebuild

If your vessel’s Caterpillar C18 DITA marine propulsion engine requires a full rebuild, overhaul, or spare parts — including keel cooling components, deep sump oil pans, turbochargers, injectors, cylinder heads, or arrangement-specific hardware — Diesel Power Holland is ready to assist. We can also rebuild to your specific arrangement number on customer specification.
