Caterpillar C18 Rebuild Generator Engine

Diesel Power Holland successfully completed the full rebuild of a Caterpillar C18 marine generator engine in 2024, restoring the unit to its full rated output of 671 kW at 1,800 rpm. Carrying the STH engine prefix, this high-output C18 is configured specifically for marine generator set applications — where continuous operation, precise frequency stability, and classification-compliant performance are non-negotiable. The rebuild was carried out in our specialised workshop in Moerdijk, Netherlands, and the engine was finished in the iconic CAT yellow, ready for integration into a generator set package.

What Is the Caterpillar C18 Marine Generator Engine?

The Caterpillar C18 is an 18.1-litre, 6-cylinder in-line diesel engine used across a broad range of applications — from marine propulsion to power generation. In its generator set configuration, the C18 is optimised for constant-speed operation at either 1,500 rpm (50 Hz) or 1,800 rpm (60 Hz), making it suitable for both European and international electrical standards. The STH prefix identifies this particular unit as a marine-rated generator engine, built and certified to the output, load response, and safety requirements demanded by commercial marine generator set applications.

At 671 kW, this is one of the higher output ratings available for the C18 platform — delivering substantially more electrical power than the propulsion-rated variants of the same engine — and is designed for sustained operation under continuous or prime power conditions.

Project Details: C18 Generator Engine Rebuild (2024)

This rebuild was completed to the following specification:

• Engine model: Caterpillar C18 Marine Generator Engine
• Engine prefix: STH
• Application: Marine generator set (genset prime mover)
• Power output: 671 kW
• Rated speed: 1,800 rpm
• Year of overhaul: 2024

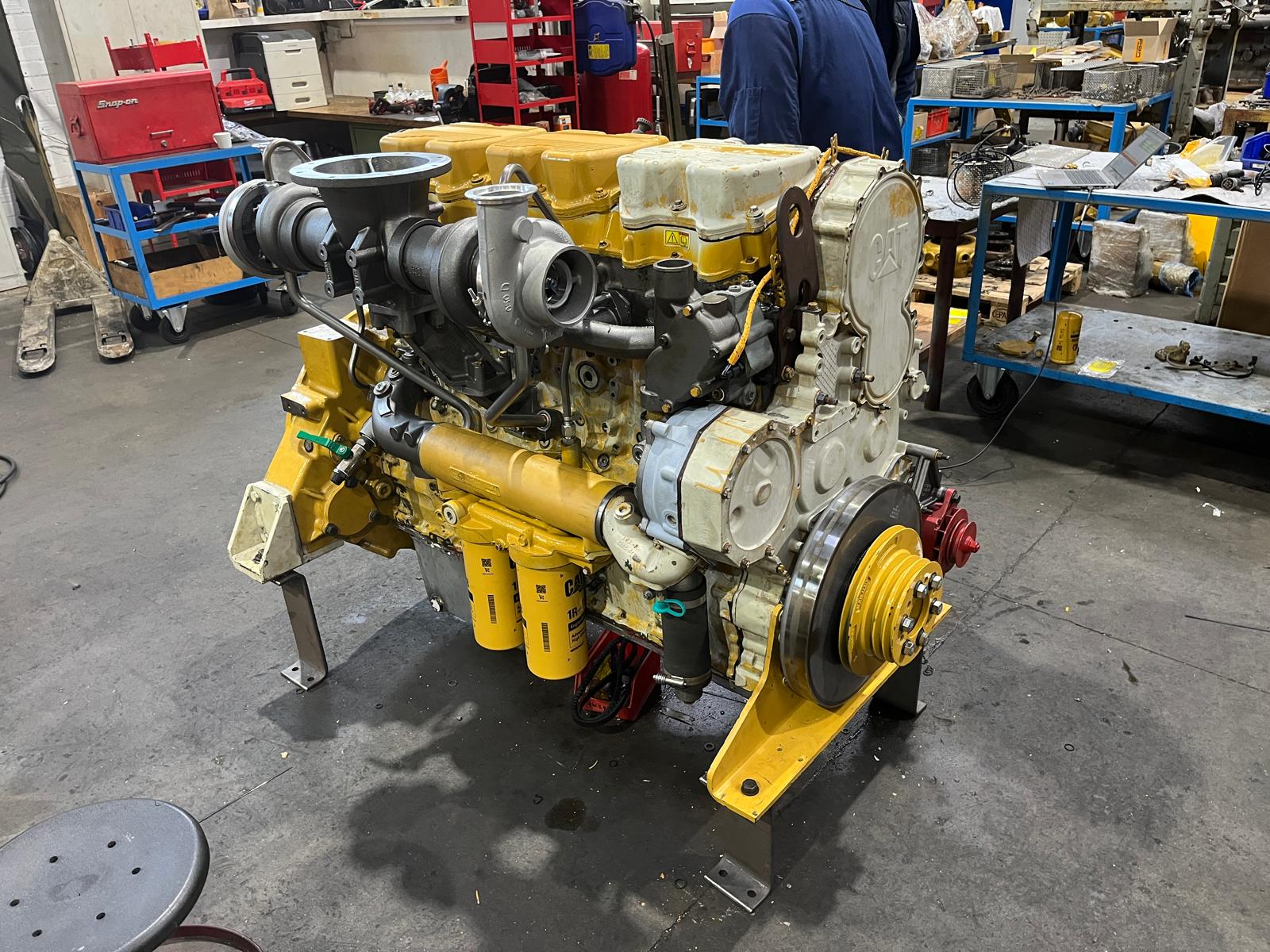

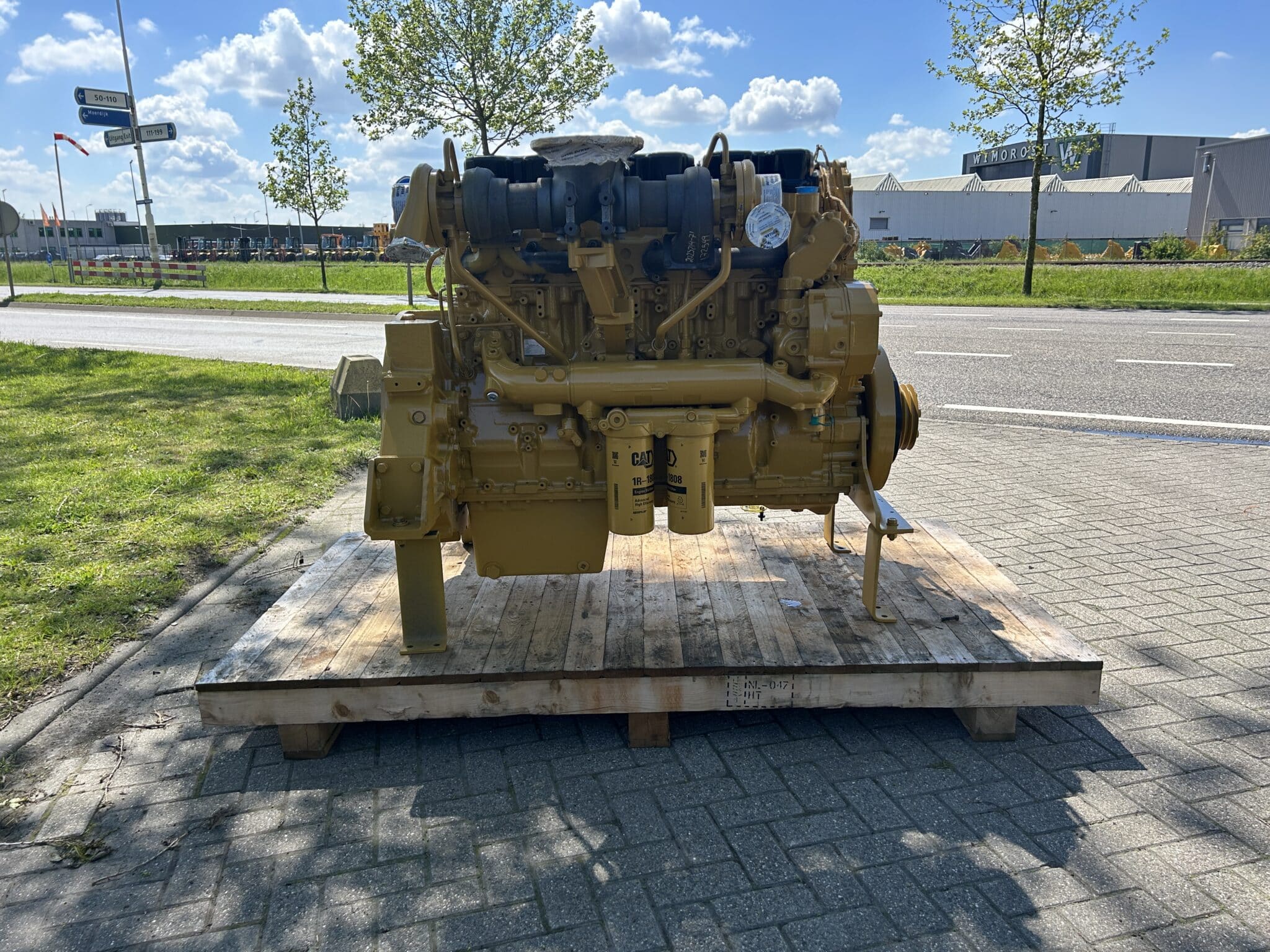

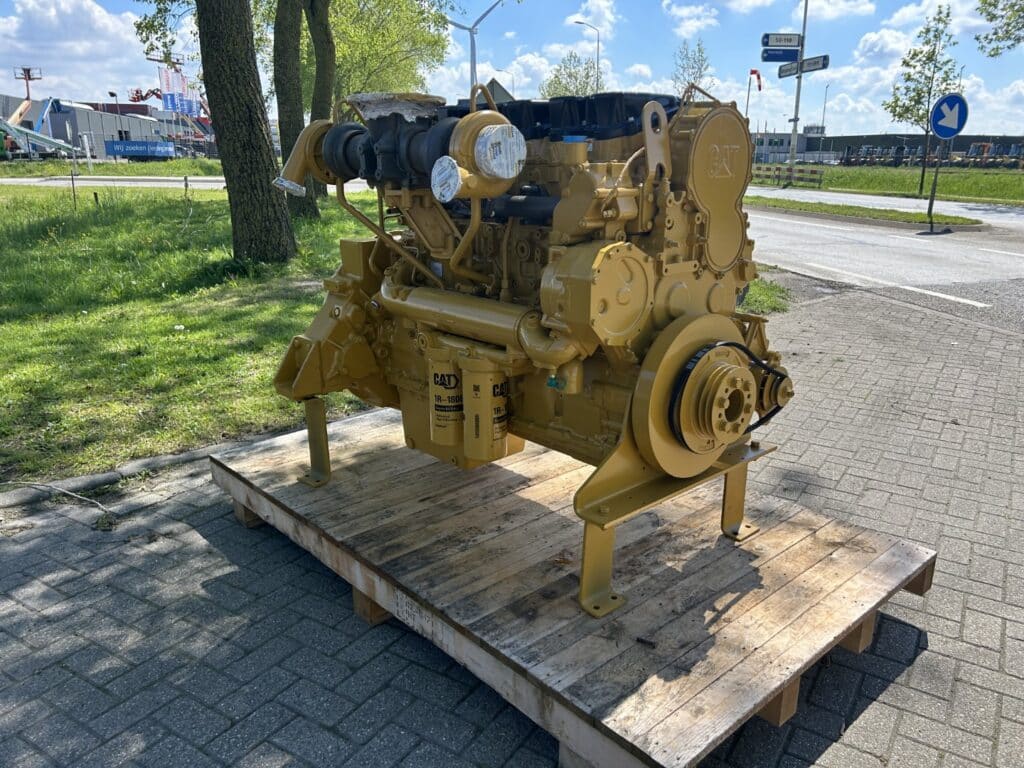

• Finish: Painted CAT yellow, ready for genset integration

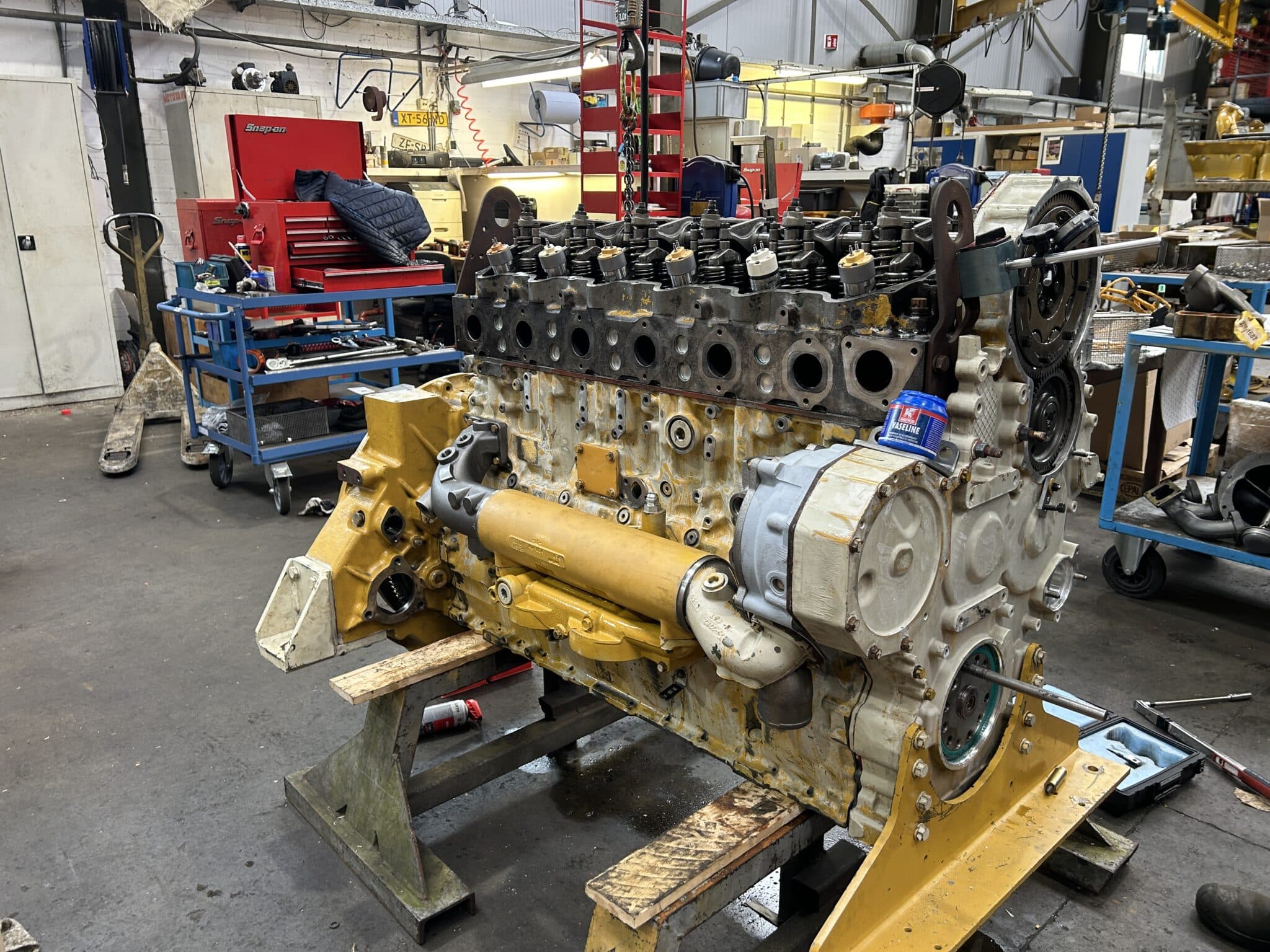

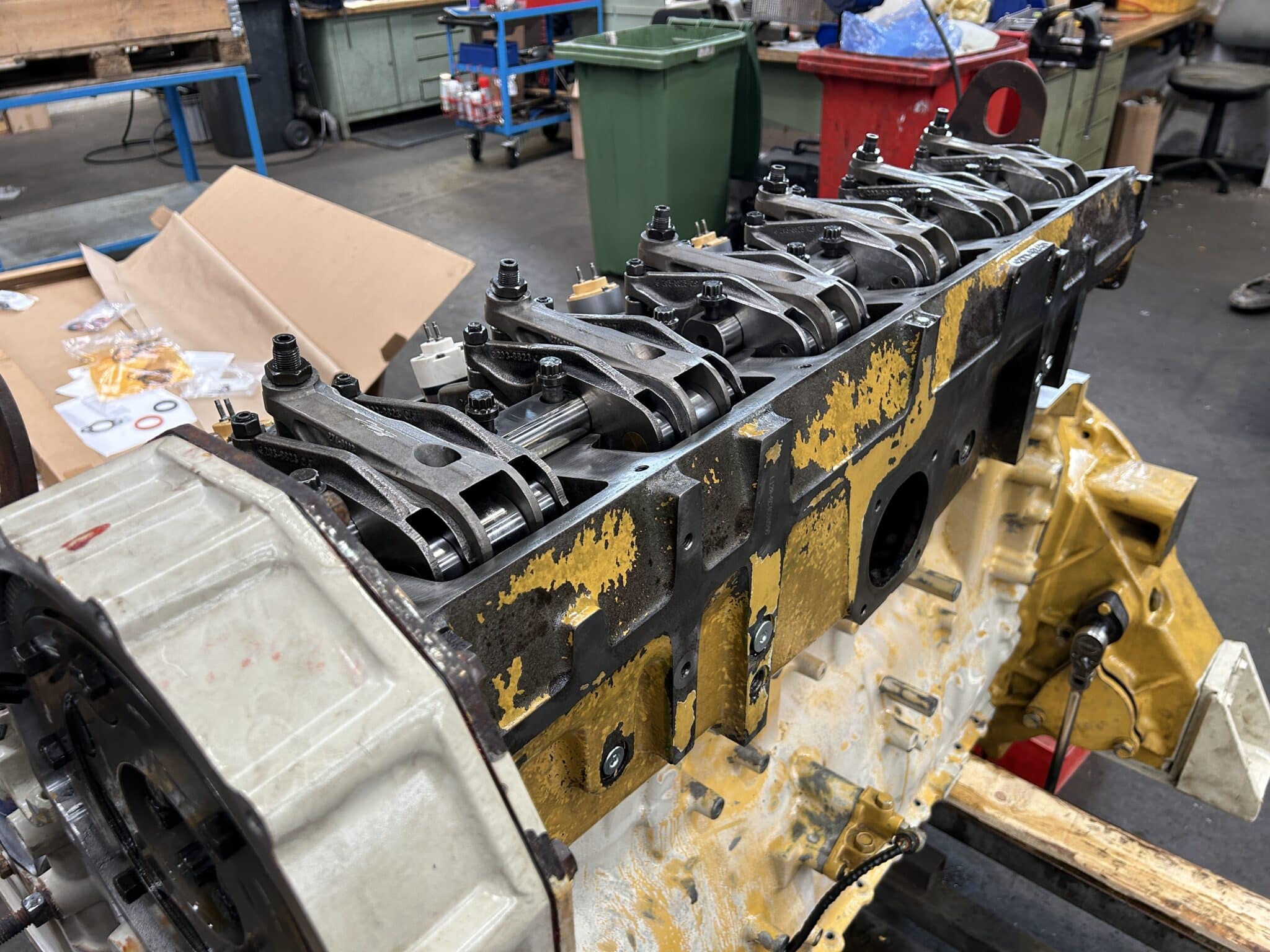

The engine was fully rebuilt to Caterpillar factory standards in Diesel Power Holland’s in-house workshop, using a combination of new and verified reusable original Caterpillar components.

Generator Engine vs Propulsion Engine

The C18 generator engine and the C18 marine propulsion engine share the same base architecture but are tuned and configured for fundamentally different operating profiles. Understanding this distinction is important when sourcing a rebuild or replacement engine.

A propulsion engine operates across a variable speed range — from idle through to full ahead — responding to changing vessel demands, sea conditions, and throttle input. Output and speed vary continuously throughout normal operation.

A generator set engine operates at a fixed, constant speed — in this case 1,800 rpm — at all times during operation, regardless of the electrical load placed on the generator. The engine management system must maintain precise rpm under rapidly changing load conditions to keep output frequency stable at 60 Hz. This demands different fuel delivery calibration, governor response tuning, and load acceptance characteristics compared to a propulsion variant.

The STH-prefix C18 is specifically rated and calibrated for this constant-speed, load-following generator application, making it unsuitable for direct substitution into a propulsion installation without re-rating — and vice versa. When sourcing a C18 generator engine rebuild, the engine prefix and arrangement number must match the original genset specification exactly.

The STH Engine Prefix

The STH prefix is Caterpillar’s serial number designation for this specific C18 generator set engine configuration. Caterpillar engine prefixes encode the engine family, application type (propulsion, generator, industrial), power rating, and cooling arrangement. For the STH-prefix C18, the designation confirms a marine generator set rating at 671 kW / 1,800 rpm — a distinct configuration from other C18 marine prefix variants such as the C1J (marine propulsion, 600 HP) or MXS (alternative generator rating).

When ordering parts or requesting a rebuild quote for a C18 marine generator engine, always provide the engine prefix and serial number to ensure the correct components and procedures are applied.

Why 1,800 rpm for a Marine Generator Engine?

Generator set engines operate at a fixed speed determined by the required electrical output frequency. In systems designed for 60 Hz power output — standard in North America, parts of South America, Japan, and many offshore and marine applications — the engine must run at 1,800 rpm to drive a 4-pole alternator at the correct synchronous speed. For 50 Hz systems — common in Europe, Asia, and Africa — the engine would instead run at 1,500 rpm.

The 671 kW STH-prefix C18 is rated at 1,800 rpm, confirming it is configured for 60 Hz electrical generation. This is a common requirement for offshore vessels, platform supply vessels, and marine applications serving markets in the Americas and the offshore industry globally, where 60 Hz is the prevailing standard.

Where the C18 671 kW Generator Engine is used

At 671 kW, the CAT C18 marine generator engine is a mid-to-high output genset prime mover widely used across the commercial marine and offshore sectors:

• Offshore support vessels (OSVs and PSVs) — powering hotel load, dynamic positioning systems, deck machinery, and thruster drives via the vessel’s main switchboard
• Cable lay and pipe lay vessels — where reliable, continuous electrical output is essential for subsea operations
• Dredgers and crane barges — supplying electrical power to hydraulic and electric drive systems
• Fishing and processing vessels — powering refrigeration, processing equipment, and vessel systems
• Ferries and RoPax vessels — as one of several parallel generator sets sharing the vessel’s electrical load
• Standby and emergency power on large vessels — where a 671 kW genset provides backup power to critical systems in the event of main generator failure

Why choose Diesel Power Holland for your CAT C18 Generator Engine Rebuild?

Diesel Power Holland rebuilds Caterpillar C18 generator engines for marine customers across more than 100 countries. What sets us apart for generator engine projects:

• Generator-specific rebuild expertise — we understand the difference between propulsion and generator applications and rebuild to the correct prefix specification every time
• 671 kW full output restoration — every rebuild is completed with the goal of restoring full rated output, verified against the original engine specification
• Fast turnaround in 2024 and beyond — our in-house workshop and extensive parts stock ensure short lead times for urgent generator engine rebuilds
• Marine sector focus — from classification documentation to CAT yellow finishing, our process is aligned to the requirements of commercial marine customers
• Worldwide shipping — rebuilt engines are delivered globally from Moerdijk, Netherlands, with all required export documentation
• Experience since 1976 — nearly five decades of Caterpillar engine expertise across marine, industrial, and power generation applications

Need a Caterpillar C18 Marine Generator Engine Rebuild?

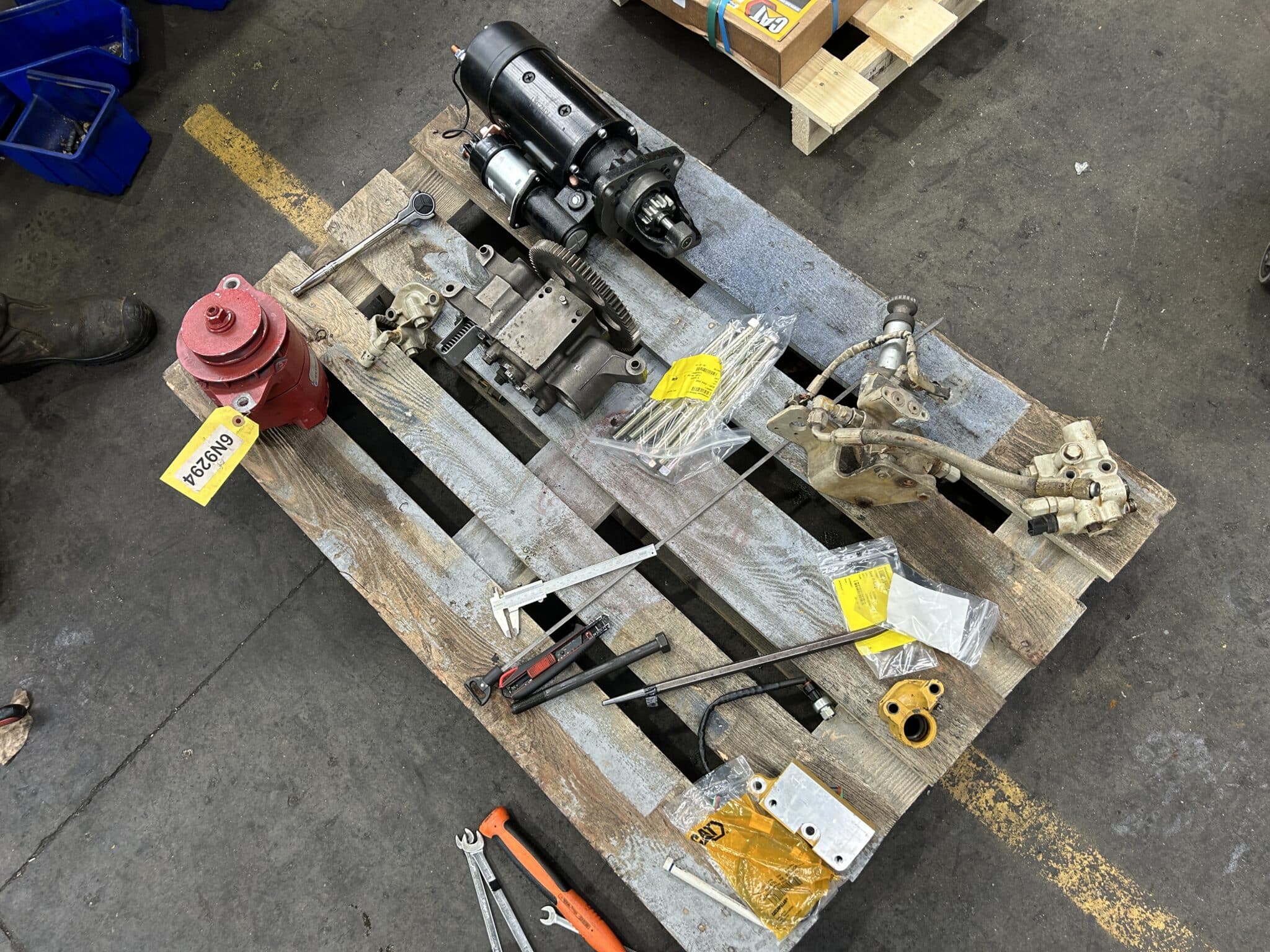

Whether your CAT C18 generator engine requires a complete rebuild, partial overhaul, or urgent spare parts — including STH-prefix components, turbochargers, cylinder heads, fuel injectors, or governor systems — Diesel Power Holland’s team is ready to assist. We can rebuild to your engine prefix and original specification, or advise on the best solution for your genset application.
