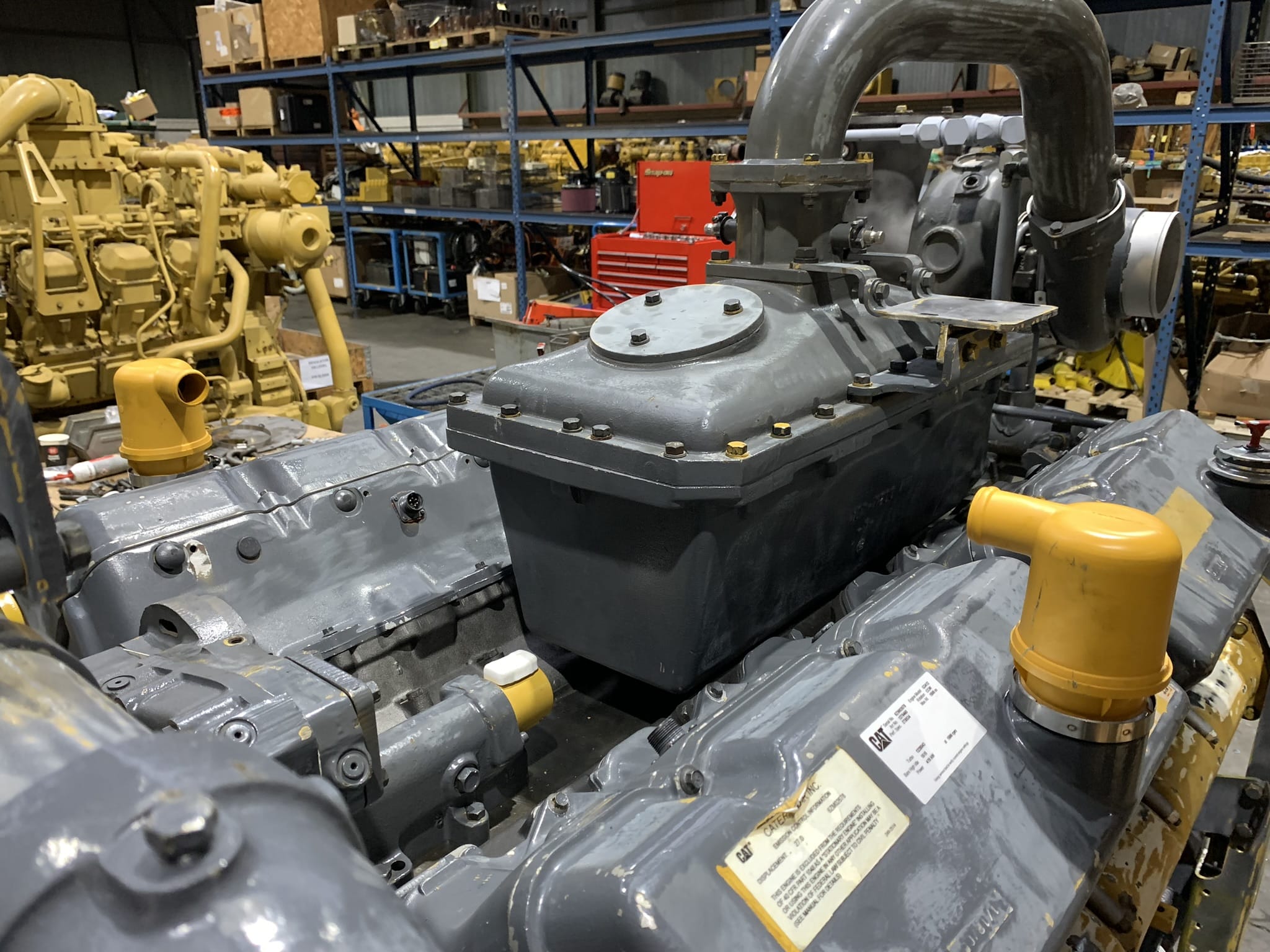

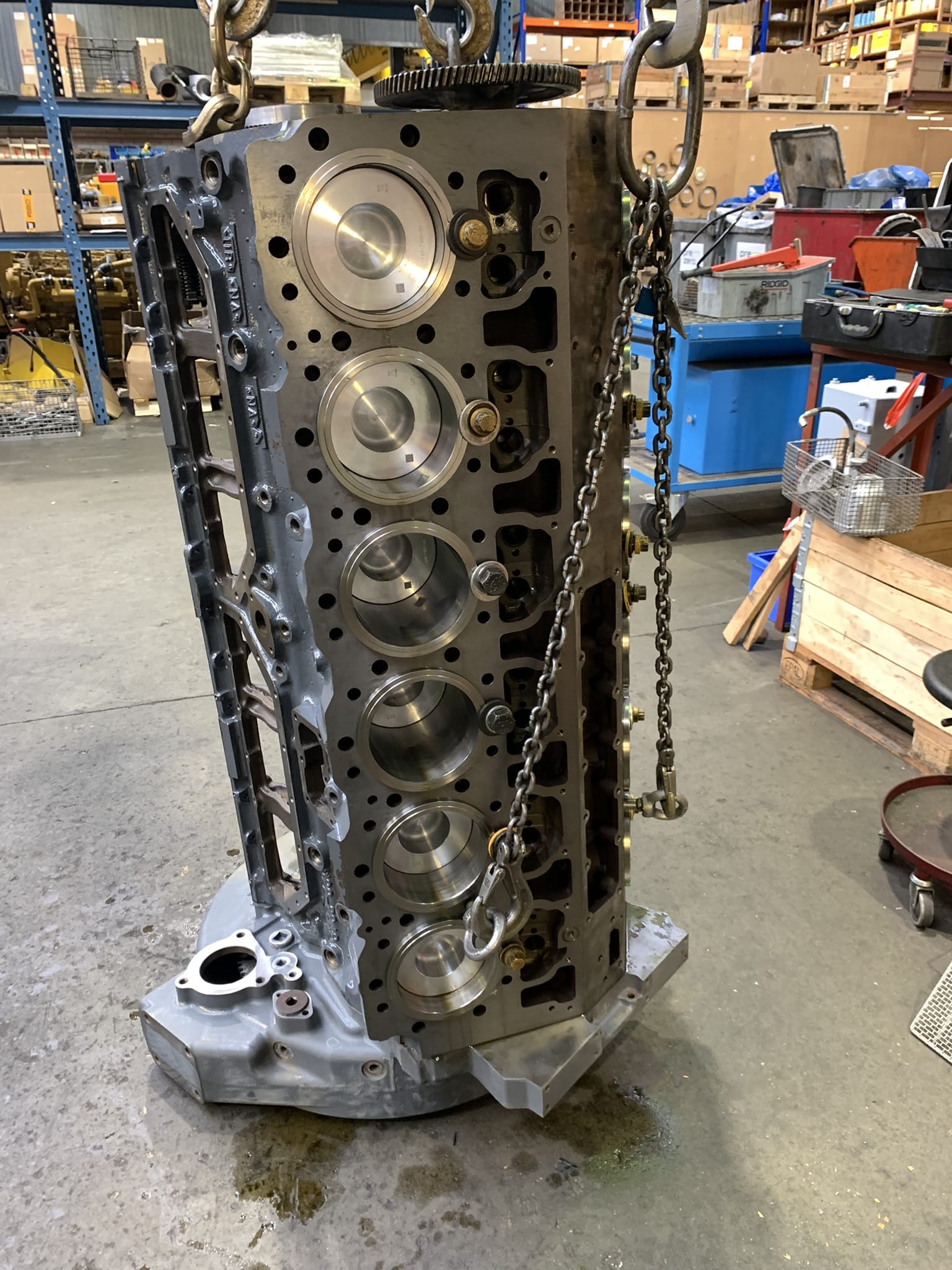

Caterpillar G3412 6ZM Gas generator engine rebuild

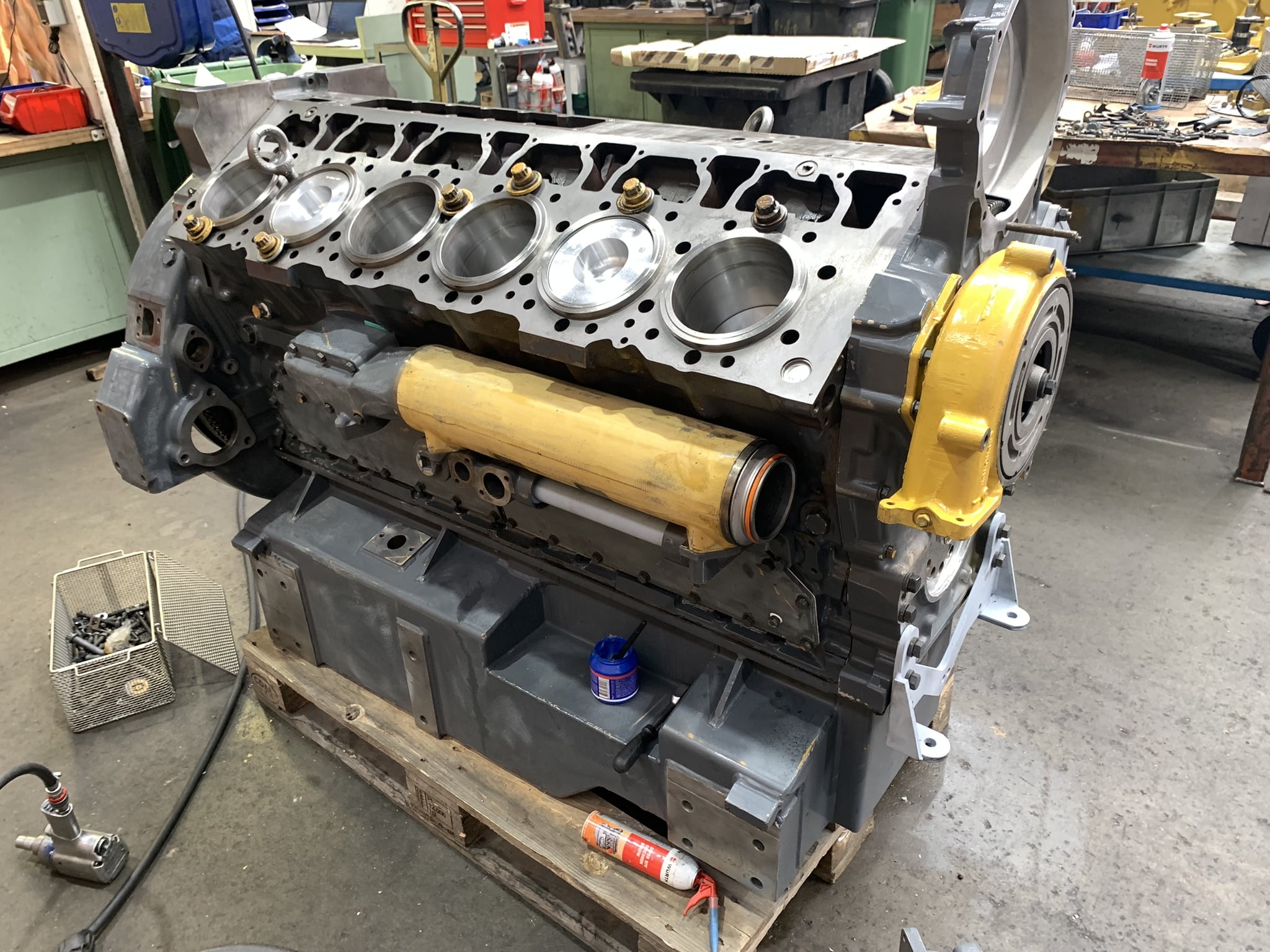

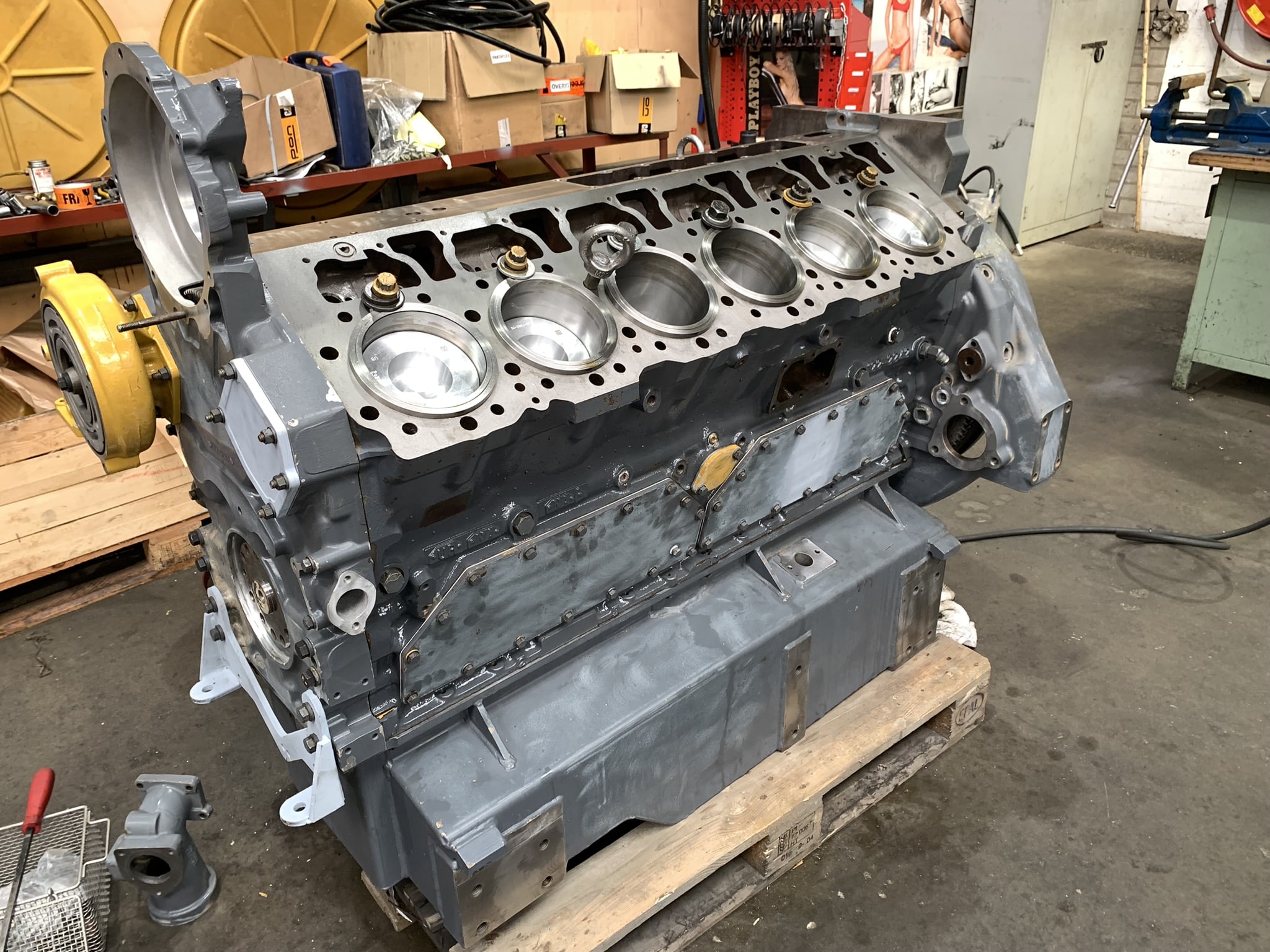

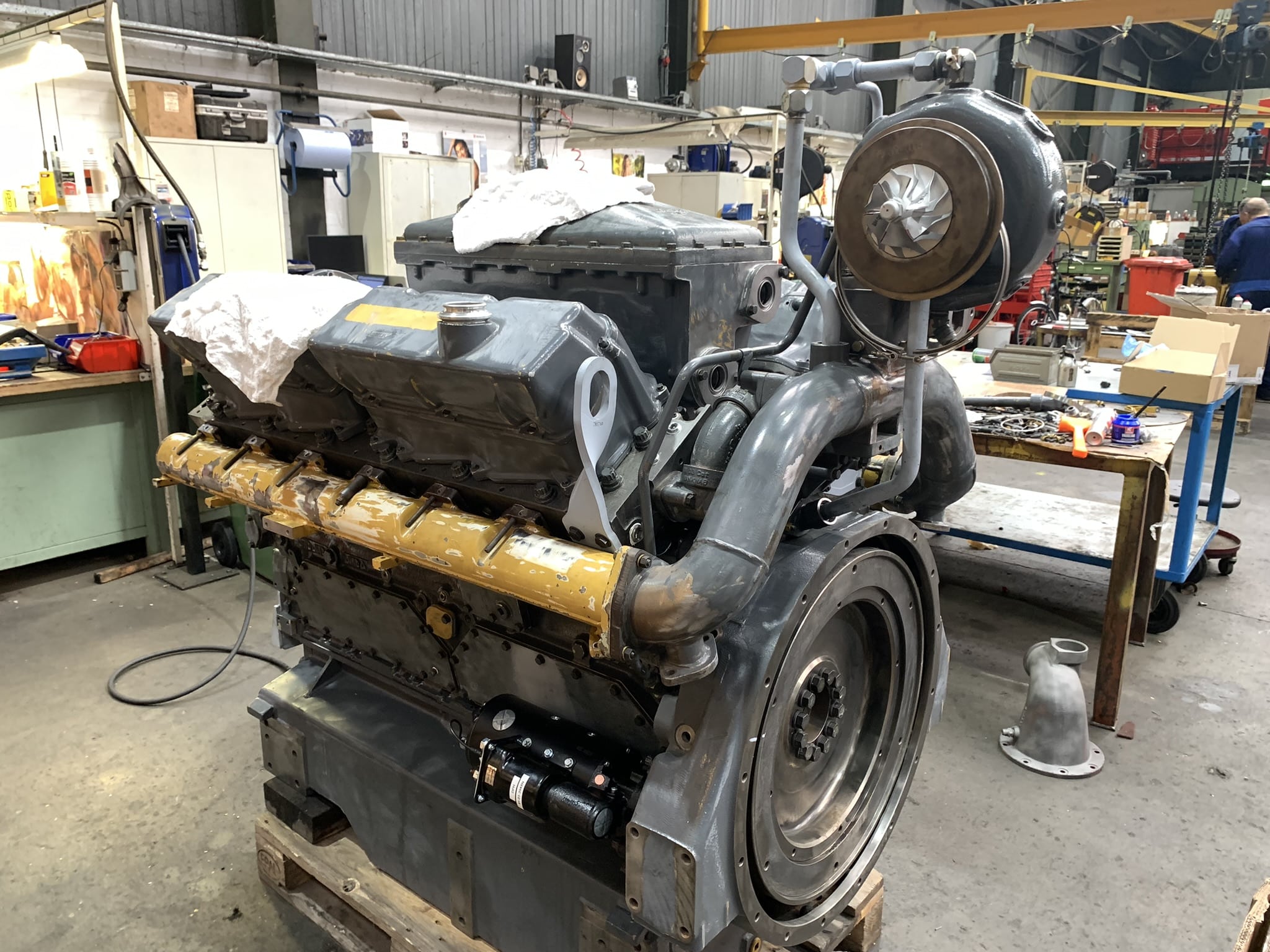

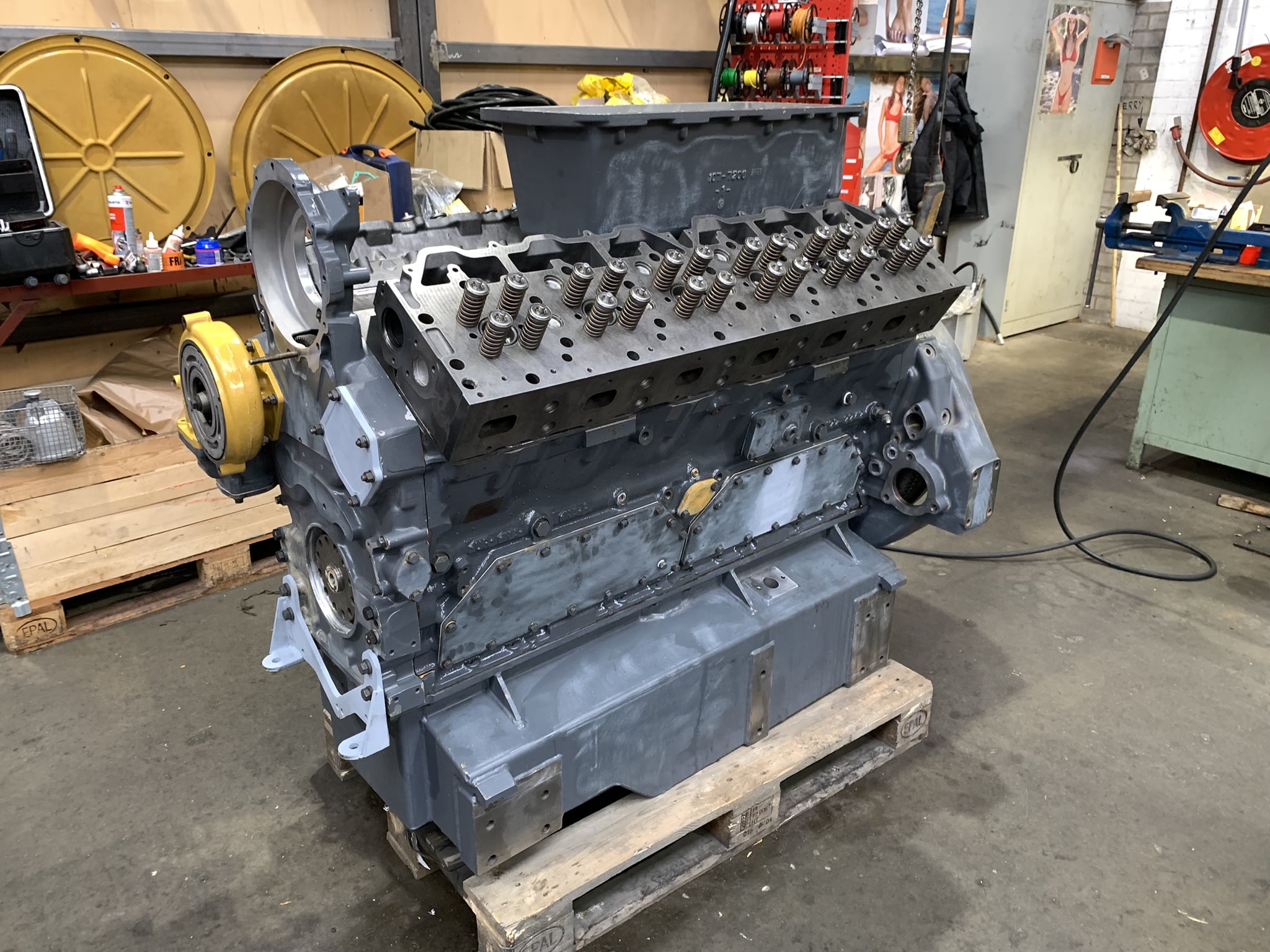

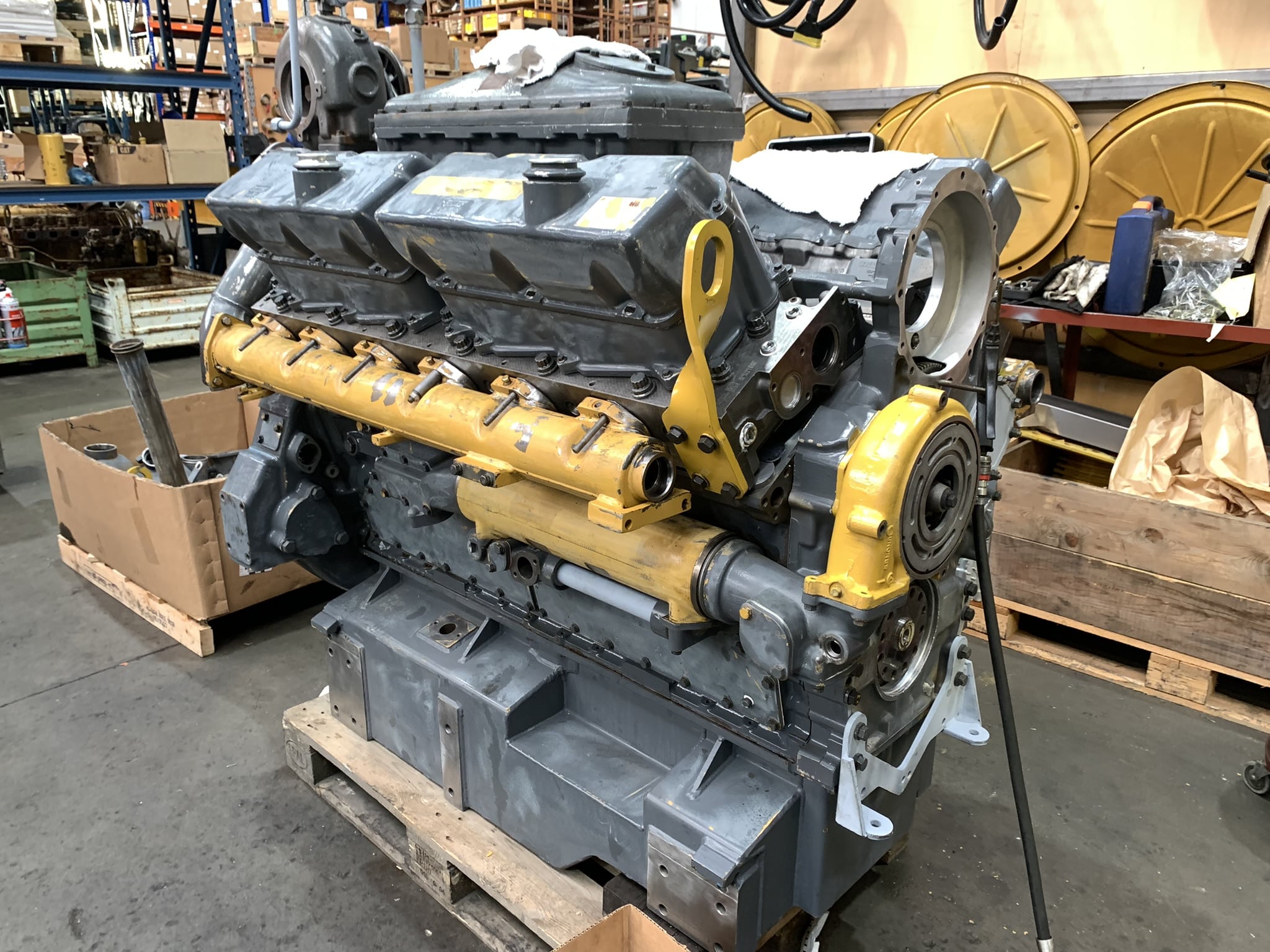

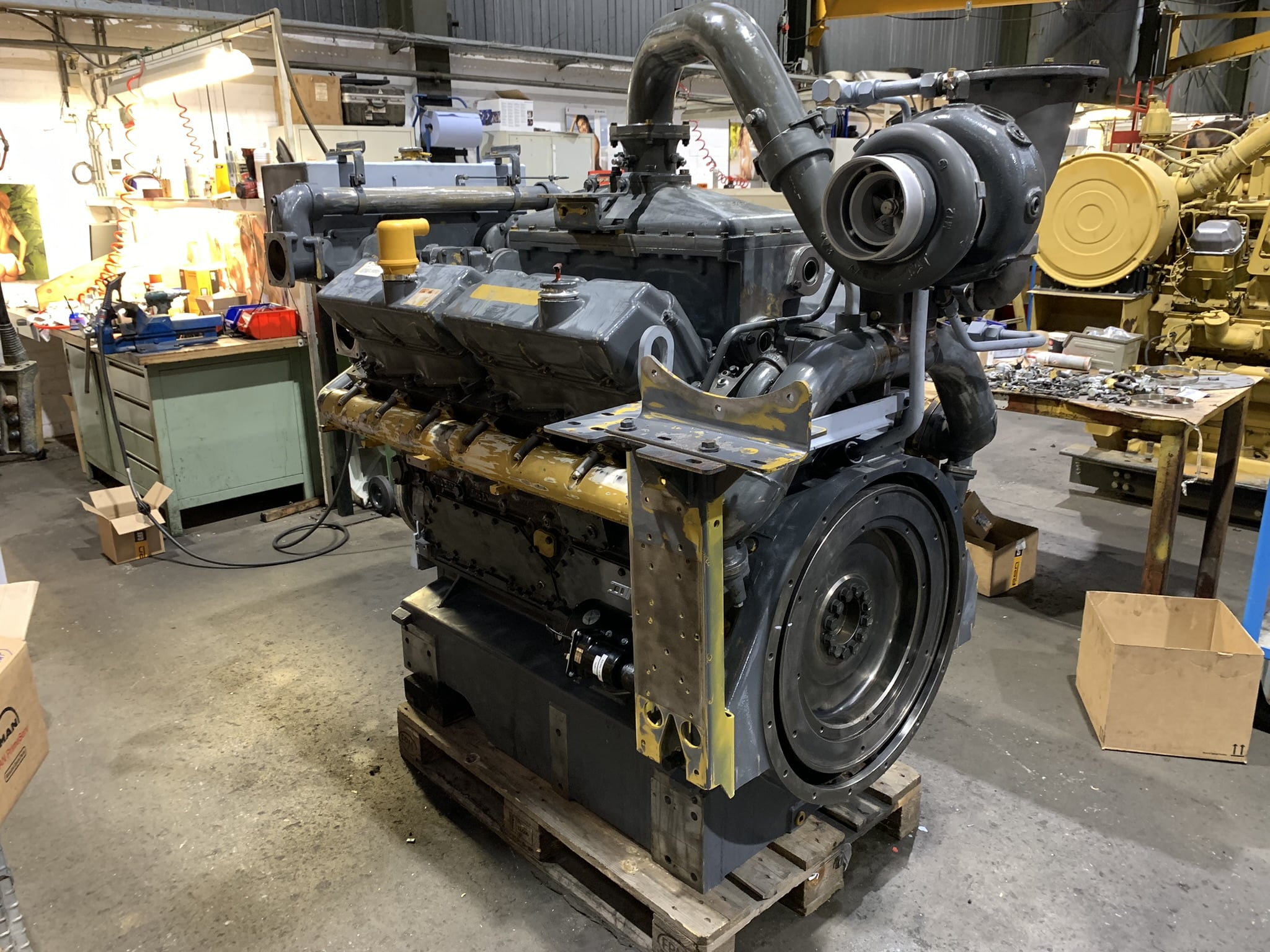

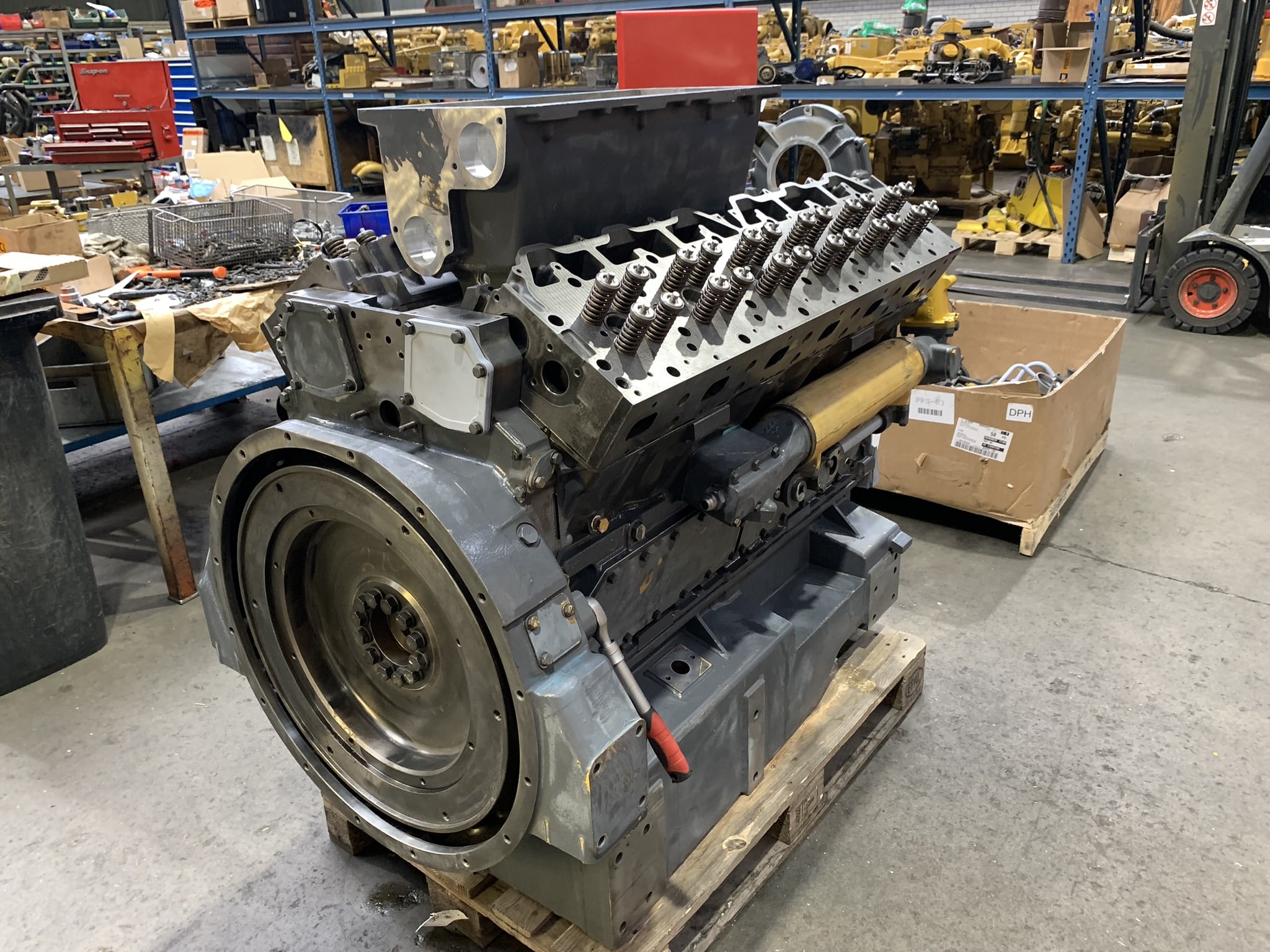

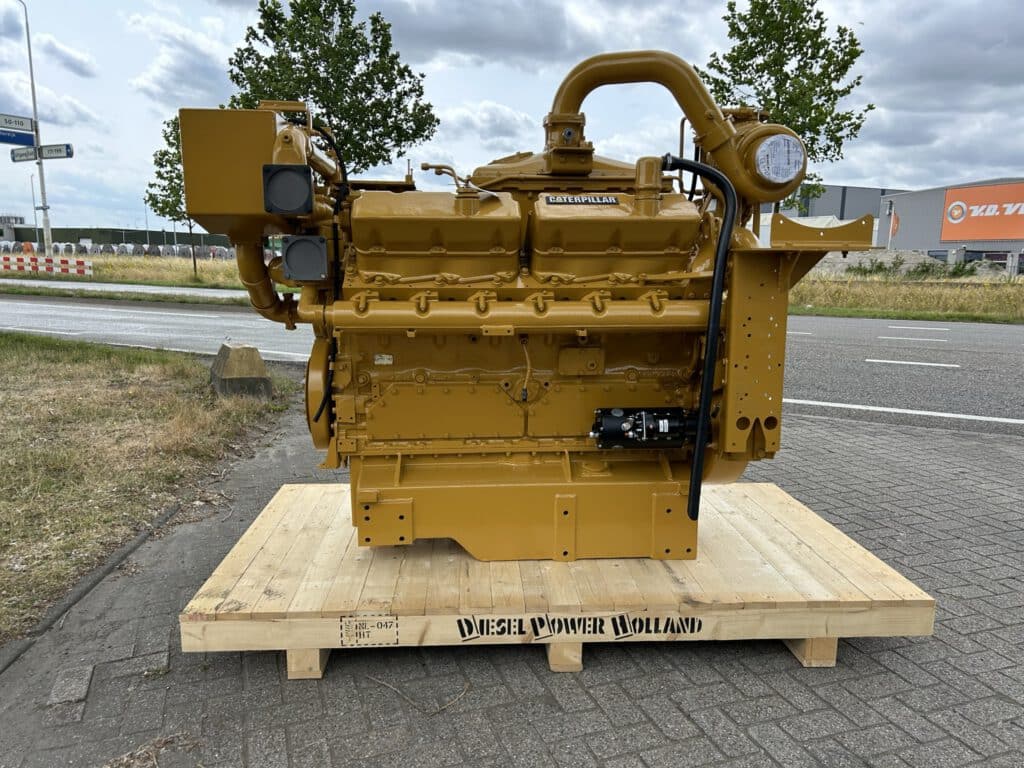

Diesel Power Holland completed the full rebuild of a Caterpillar G3412 gas generator engine for a customer in the gas industry — a specialist project requiring deep knowledge of Caterpillar’s G3400 gas engine platform. Carrying the 6ZM engine prefix and arrangement number 127-6460, this unit is rated at 419 kW at 1,500 rpm and is configured with a heat exchanger cooling system, jacket water pump, expansion tank, and auxiliary water pump — a setup typical of stationary gas generator and gas compression installations. The complete rebuild was carried out to Caterpillar factory standards using new and reusable original Caterpillar parts.

What Is the Caterpillar G3412?

The Caterpillar G3412 is a V12 natural gas engine built on Caterpillar’s G3400 platform — one of the most widely deployed gas engine families in the global oil & gas and power generation industries. The “G” prefix distinguishes it from the diesel-fuelled 3412: where the standard 3412 uses compression ignition to combust diesel fuel, the G3412 is a spark-ignited (SI) engine that runs on natural gas, associated petroleum gas, field gas, or other gaseous fuels.

This fundamental difference in combustion technology makes the G3412 the engine of choice for applications where gaseous fuel is the available or preferred energy source — particularly in upstream oil & gas environments where field gas would otherwise be flared or vented.

H2: What Does SI-TA Mean on the Caterpillar G3412?

The designation G3412 SI-TA describes the engine’s core technology:

• SI — Spark Ignited: The engine uses spark plugs to ignite a pre-mixed air/gas charge, in contrast to diesel’s compression ignition. This allows the engine to run cleanly on natural gas and other lean-burn gaseous fuels.
• TA — Turbocharged Aftercooled: A turbocharger compresses the incoming air/gas mixture to increase power output per litre of displacement. The aftercooler then reduces charge temperature before it enters the cylinders, improving combustion efficiency and reducing thermal stress on engine components.

Together, these technologies allow the G3412 to achieve high power density and fuel efficiency from natural gas — delivering 419 kW from a platform originally designed for diesel, while maintaining the durability required for continuous operation in demanding oil & gas environments.

Project Details — G3412 Gas Generator Engine Rebuild

This rebuild was completed to the following specification:

• Engine model: Caterpillar G3412 SI-TA
• Engine prefix: 6ZM
• Application: Gas generator drive
• Power output: 419 kW
• Rated speed: 1,500 rpm
• Arrangement number: 127-6460
• Cooling system: Heat exchanger cooling
• Cooling components: Jacket water pump, expansion tank, auxiliary water pump
• Rebuild standard: Full rebuild to Caterpillar procedures using new and original reusable CAT parts

The 6ZM Engine Prefix — What It Identifies

The 6ZM prefix is Caterpillar’s serial number identifier for this specific G3412 gas engine configuration. In Caterpillar’s naming system, each prefix encodes the engine family, fuel type, power rating, and application variant. For gas engine owners and engine repair specialists, the prefix is the primary reference point for sourcing correct parts, documentation, and rebuild procedures. The 6ZM prefix distinguishes this unit from other G3412 variants — including those rated for different power outputs, rpm, or fuel types — and must be referenced alongside the arrangement number when ordering parts or requesting a rebuild.

Heat Exchanger Cooling — Why It Is Used on the G3412

The G3412 in this configuration uses heat exchanger cooling rather than a radiator or air-cooled system. In heat exchanger cooling, the engine’s jacket water circuit — circulating coolant through the engine block and heads — transfers heat to a separate external cooling medium (typically plant cooling water or a dedicated closed-loop circuit) via a heat exchanger mounted on or near the engine.

This cooling approach is standard in stationary industrial and oil & gas plant installations for several reasons. First, it allows waste heat recovery — the heat rejected by the engine can be captured and used for process heating or preheating, improving overall facility efficiency. Second, it removes the need for a large external radiator, making it suitable for enclosed plant rooms and process facilities where space and airflow are limited. Third, it provides more consistent and controllable coolant temperatures than ambient air cooling, which can vary significantly with seasonal and geographic conditions.

The jacket water pump maintains coolant circulation through the engine block, the auxiliary water pump supports the external cooling circuit, and the expansion tank accommodates thermal volume changes in the closed coolant circuit — all three components being critical for stable long-term operation.

The Caterpillar G3400 Platform — Industry Background

The G3400 engine series — of which the G3412 is the V12 variant — is one of Caterpillar’s longest-established gas engine platforms, designed specifically for the demands of continuous industrial operation on gaseous fuels. The platform covers a range of configurations from the G3406 (6-cylinder) through the G3408 (8-cylinder) to the G3412 (12-cylinder) and G3416 (16-cylinder), providing a scalable power range for a wide variety of applications.

The G3400 series is engineered for:

• Maximum uptime — robust construction with long maintenance intervals suited to continuous 24/7 operation
• Fuel flexibility — capable of running on natural gas, propane, associated petroleum gas, wellhead gas, biogas, landfill gas, and other gaseous fuels depending on configuration
• Low operating cost — optimised combustion efficiency and extended TBO (time between overhauls) compared to many competing gas engine platforms
• Serviceability — designed for in-field maintenance and rebuild, with well-established parts availability and service documentation

Applications of the Caterpillar G3412 Gas Engine

The CAT G3412 at 419 kW is deployed across a wide range of oil & gas and industrial applications where gaseous fuel and continuous high-output operation are the defining requirements:

• Gas lift operations — powering compressors that inject gas downhole to assist oil production in depleted or low-pressure reservoirs
• Gas compression at wellheads — compressing raw field gas for pipeline transportation or processing
• Gas extraction and processing — driving compressors and ancillary equipment in gas processing facilities
• Stationary power generation — generating electricity at remote oil & gas sites, industrial plants, and facilities where grid power is unavailable or unreliable
• Landfill gas and biogas power generation — converting waste gases into useful electrical energy at landfill sites, wastewater treatment plants, and agricultural biogas installations
• Cogeneration (CHP) — combined heat and power applications where engine exhaust and jacket water heat are recovered alongside electrical generation, maximising total fuel efficiency

In all these applications, the G3412’s combination of high power output, fuel flexibility, and robust G3400 platform engineering makes it a preferred choice for operators prioritising uptime and low total cost of ownership.

Gas Engine Rebuild vs Diesel Engine Rebuild — Key Differences

Rebuilding a Caterpillar G3412 gas engine requires different expertise from rebuilding a diesel engine, even where the underlying block architecture is similar. Key differences include:

• Spark ignition system — spark plugs, ignition timing, and the prechamber system (if fitted) must be inspected and correctly set during rebuild, as ignition timing on a gas engine is critical to both performance and emissions
• Air/fuel mixture system — the gas carburettor or fuel admission system requires calibration to the specific gas composition and heat value being used
• Valve and seat materials — gas engines typically use different valve and seat material specifications from diesel engines to handle the different combustion temperatures and lack of fuel lubrication
• Piston and combustion chamber geometry — optimised for the different knock resistance and flame propagation characteristics of natural gas vs diesel

Diesel Power Holland’s engineers are experienced in both gas and diesel Caterpillar engine rebuilds, and approach each G3412 project with the specific procedures, tooling, and parts knowledge required for a correct gas engine overhaul.

Why Choose Diesel Power Holland for Your CAT G3412 Rebuild?

Gas industry operators choose Diesel Power Holland for Caterpillar G3412 gas engine rebuilds because we combine Caterpillar platform expertise with the operational understanding of oil & gas and gas compression applications:

• G3400 gas engine experience — we rebuild G3412 and G3400 series engines to customer specification across all prefix variants
• Correct gas engine rebuild procedures — our technicians apply the specific techniques and parts required for spark-ignited gas engines, not just diesel procedures
• Over 1,000,000 parts in stock — including G3400-series components for fast sourcing and minimal downtime
• Customer-specification rebuilds — we rebuild to your arrangement number and site-specific fuel and cooling configuration
• Worldwide logistics — rebuilt engines delivered globally from Moerdijk, Netherlands, with full documentation
• Experience since 1976 — serving oil & gas customers across more than 100 countries for nearly five decades

Request a Caterpillar G3412 Gas Engine Rebuild

If your Caterpillar G3412 gas generator engine requires a complete rebuild, overhaul, or spare parts — including 6ZM-prefix components, spark plugs, fuel admission systems, valve train parts, heat exchanger components, or internal engine hardware — Diesel Power Holland’s team is ready to assist. We rebuild to your engine prefix, arrangement number, and site-specific configuration.
