Long Block for Caterpillar 3512C HD Marine Auxiliary engine

A stalled vessel in African waters. A broken Caterpillar 3512C HD marine engine. Limited time. Zero tolerance for failure.

When a major marine customer faced this critical situation, Diesel Power Holland offered an innovative solution: a Caterpillar 3512C HD long block rebuild. By rebuilding only the core engine components and reusing external parts, we cut repair time in half, reduced costs dramatically, and got the vessel back to sea quickly — without compromising reliability or performance.

This case study demonstrates the power of marine engineering expertise, creative problem-solving, and precision workmanship. If your vessel is down, or you’re planning major engine maintenance, a long block solution might be exactly what your operation needs.

The Situation: Stalled Vessel, Urgent Timeline

A Critical Problem

A large marine vessel operating in African waters suffered catastrophic Caterpillar 3512C HD engine failure. The vessel was immobilized, unable to complete its mission. Time was money — every day the ship sat idle cost the operator tens of thousands in lost productivity, crew salaries, and contract penalties.

The customer faced a brutal choice:

• Option 1: Replace the entire engine (12–16 weeks, $500,000+)
• Option 2: Ship the engine to Europe for overhaul (8–10 weeks, logistical nightmare)
• Option 3: Find a fast, reliable local solution

The Challenge

Standard engine overhaul meant removing the engine from the vessel, complete disassembly, inspection of 2,000+ components, and a months-long rebuild cycle. For a working vessel with crew and obligations, this timeline was unacceptable.

The customer needed a solution that balanced speed with reliability. Could it be done?

The Solution: Long Block Rebuild

What is a Long Block?

A long block is not a complete engine — it’s an engineered solution that focuses on the most critical components while leveraging existing external parts. Think of it as a “core engine refresh.”

A typical Caterpillar marine diesel long block includes:

• Block group — engine foundation
• Crankshaft — power generation core
• Piston & rod group — combustion drivers
• Cylinder heads — precision-engineered pressure vessels
• Injectors — fuel delivery precision
• Valve covers & breather group — top-end sealing
• Manifolds (intake & exhaust) — flow management
• Aftercooler group — temperature & efficiency
• Gear group — front and rear
• Front & flywheel housings — structural support
• Flywheel — rotational mass & coupling

What stays on the vessel’s existing engine:

• Turbocharger (if serviceable)
• Alternator
• Water pump
• Oil cooler (if functional)
• Exhaust system
• Mounting brackets

This approach delivers three critical advantages:

1. Speed — 4–8 weeks instead of 12–16 weeks
2. Cost — 50–60% cheaper than full engine replacement
3. Reliability — 90% of new engine performance

The Caterpillar 3512C HD Long Block Rebuild: Step-by-Step

Project Overview

DPH Arrangement Number: 320-2278 Engine Prefix: E3Y Market Segment: Marine Propulsion (Main & Auxiliary) Classification: Built under classification society approval

Inspection & Planning Phase

Our technical specialists conducted a comprehensive remote assessment:

• Reviewed engine history and failure mode
• Assessed vessel’s infrastructure and crane capacity
• Determined which external components were salvageable
• Created a custom rebuild scope balancing speed and quality

Decision: A long block rebuild would restore full marine duty capability in a fraction of the time.

Long Block Rebuild Process

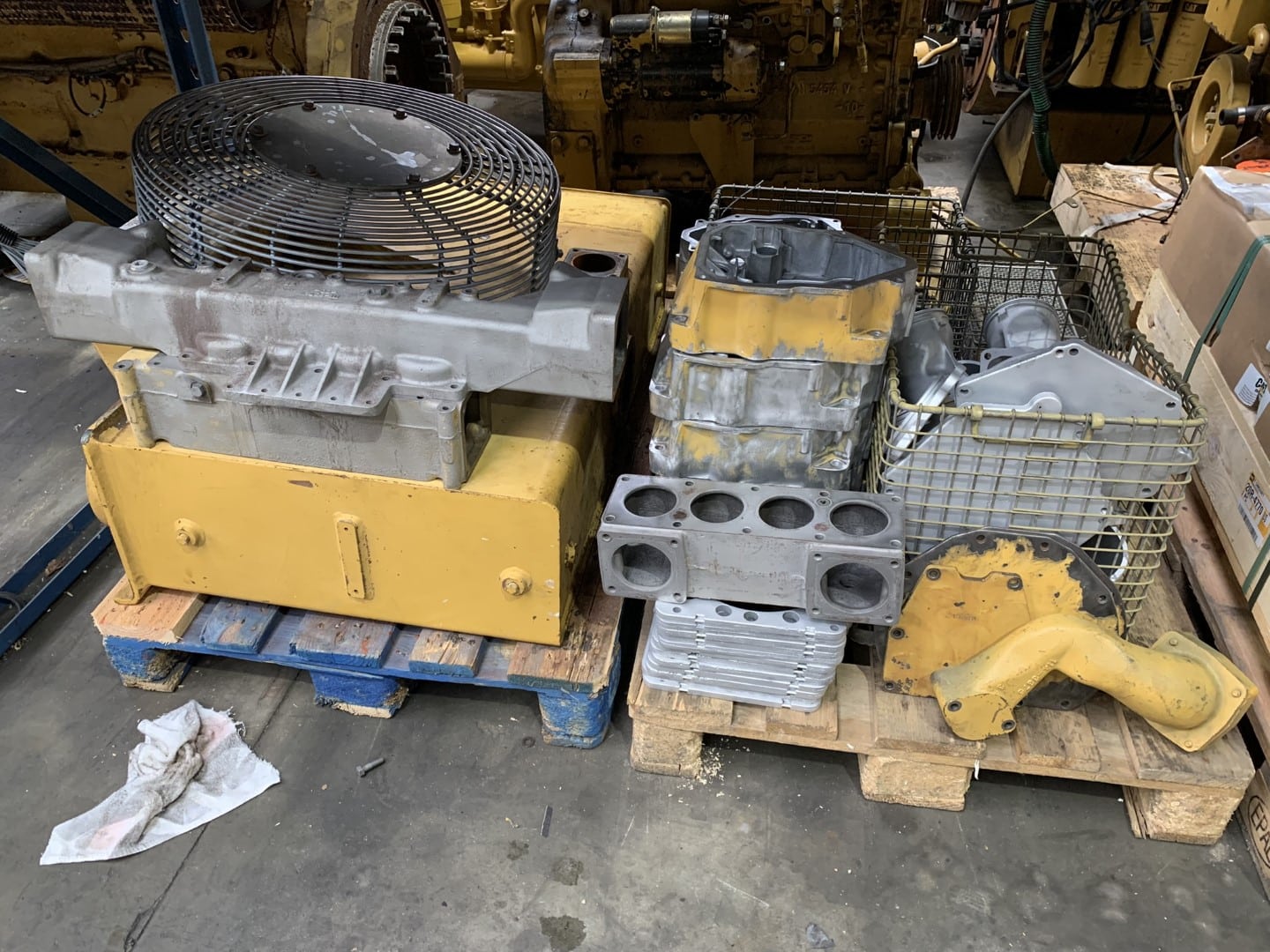

Step 1: Core Component Removal & Transport The block, crankshaft, pistons, rods, cylinder heads, and critical internals were carefully removed and packaged for shipment to Diesel Power Holland’s Moerdijk facility.

Step 2: Detailed Inspection Every component was inspected for wear, cracks, and dimensional accuracy:

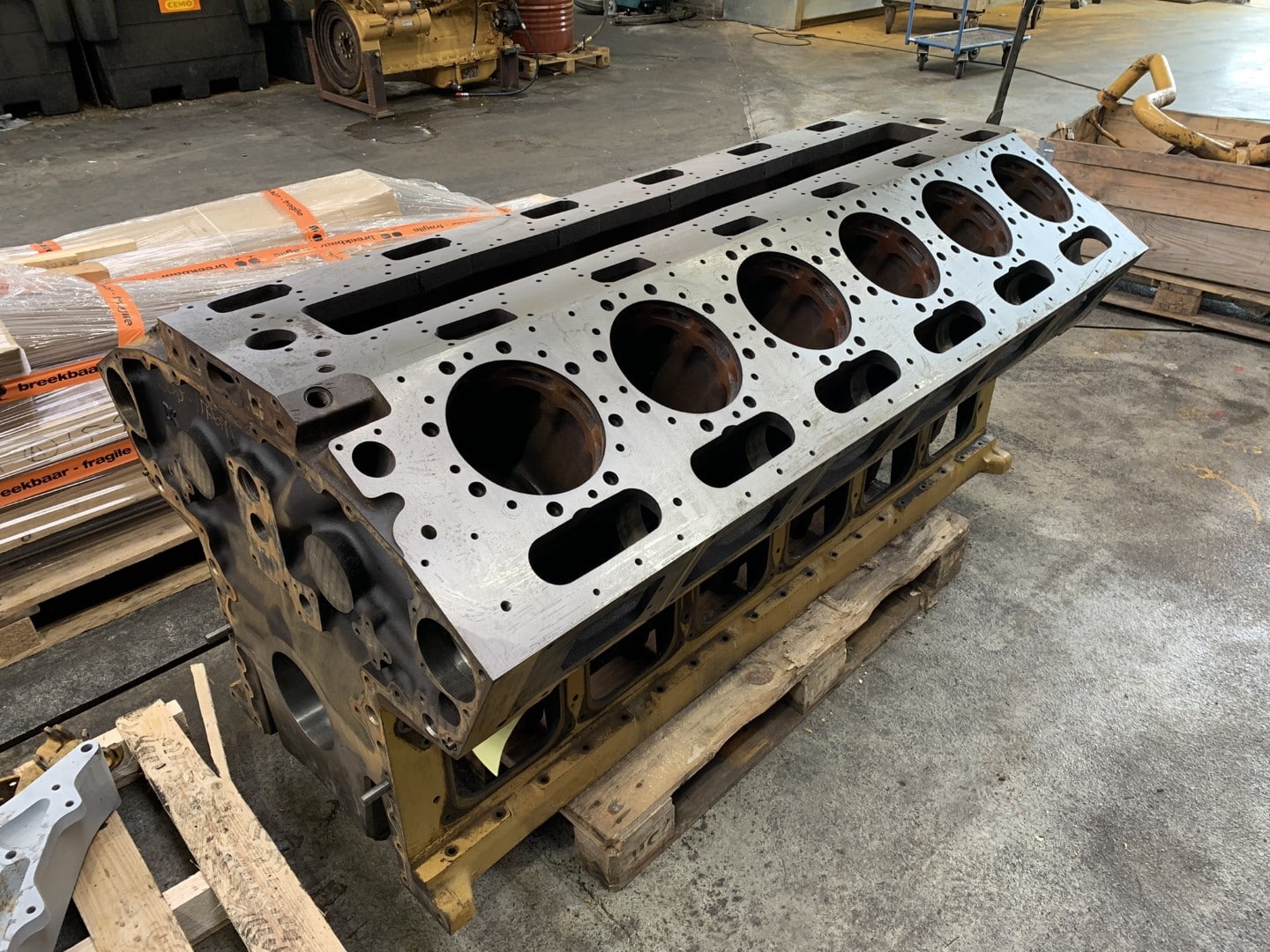

• Block checked for cracks and boring dimensions

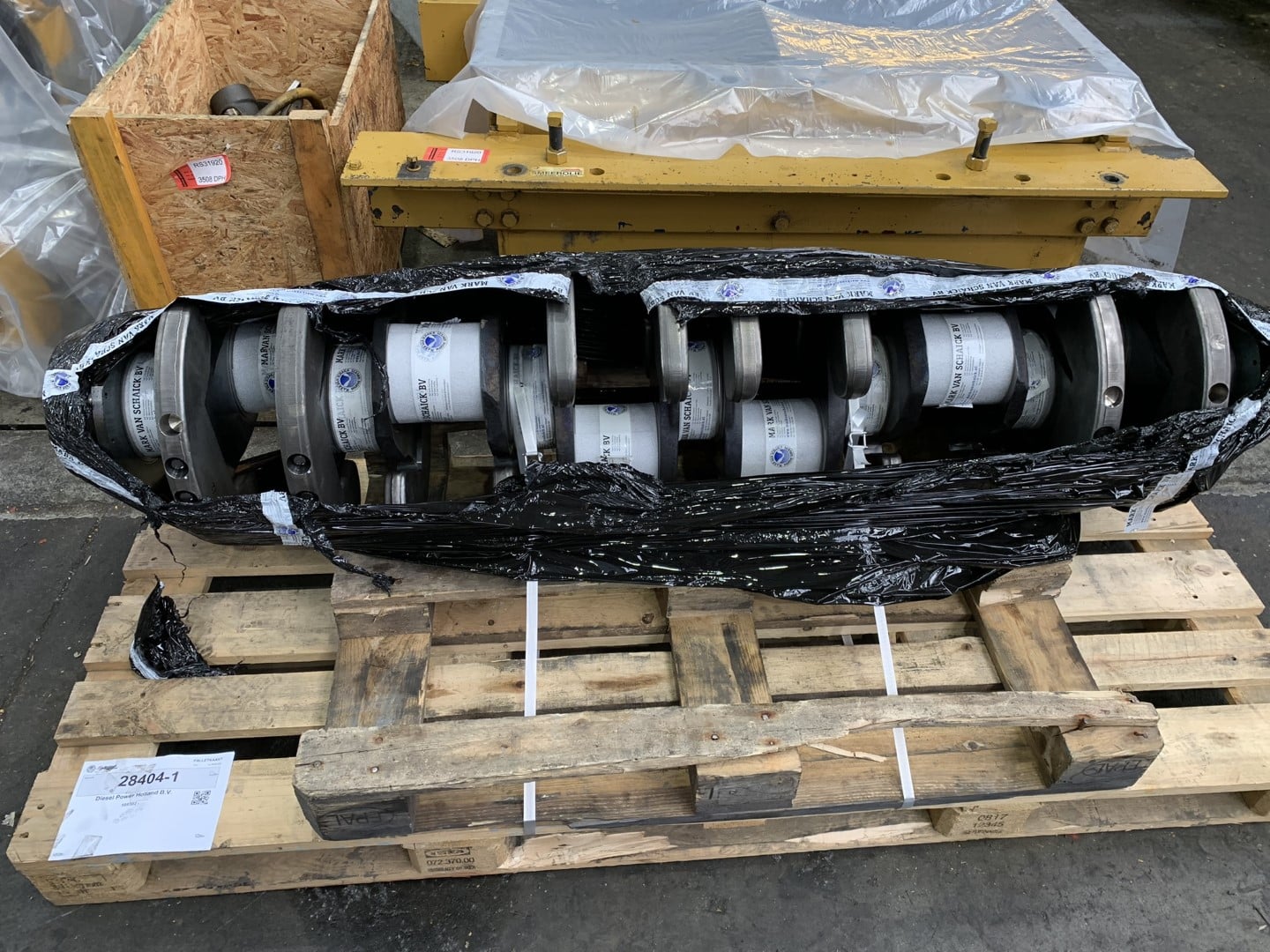

• Crankshaft evaluated for wear and runout
• Pistons and rods inspected for scuffing and stress
• Cylinder heads measured for flatness and valve seat condition

Step 3: Bearing & Seal Replacement

• All main bearings — new Caterpillar specification bearings installed
• All connecting rod bearings — replaced with OEM parts
• Crankshaft seals — new front and rear seals for oil integrity
• Valve seals & ring grooves — inspected and reconditioned

Step 4: Valve & Injector Service

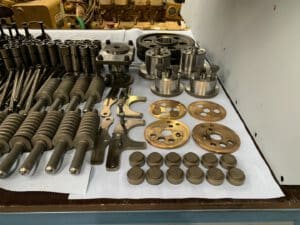

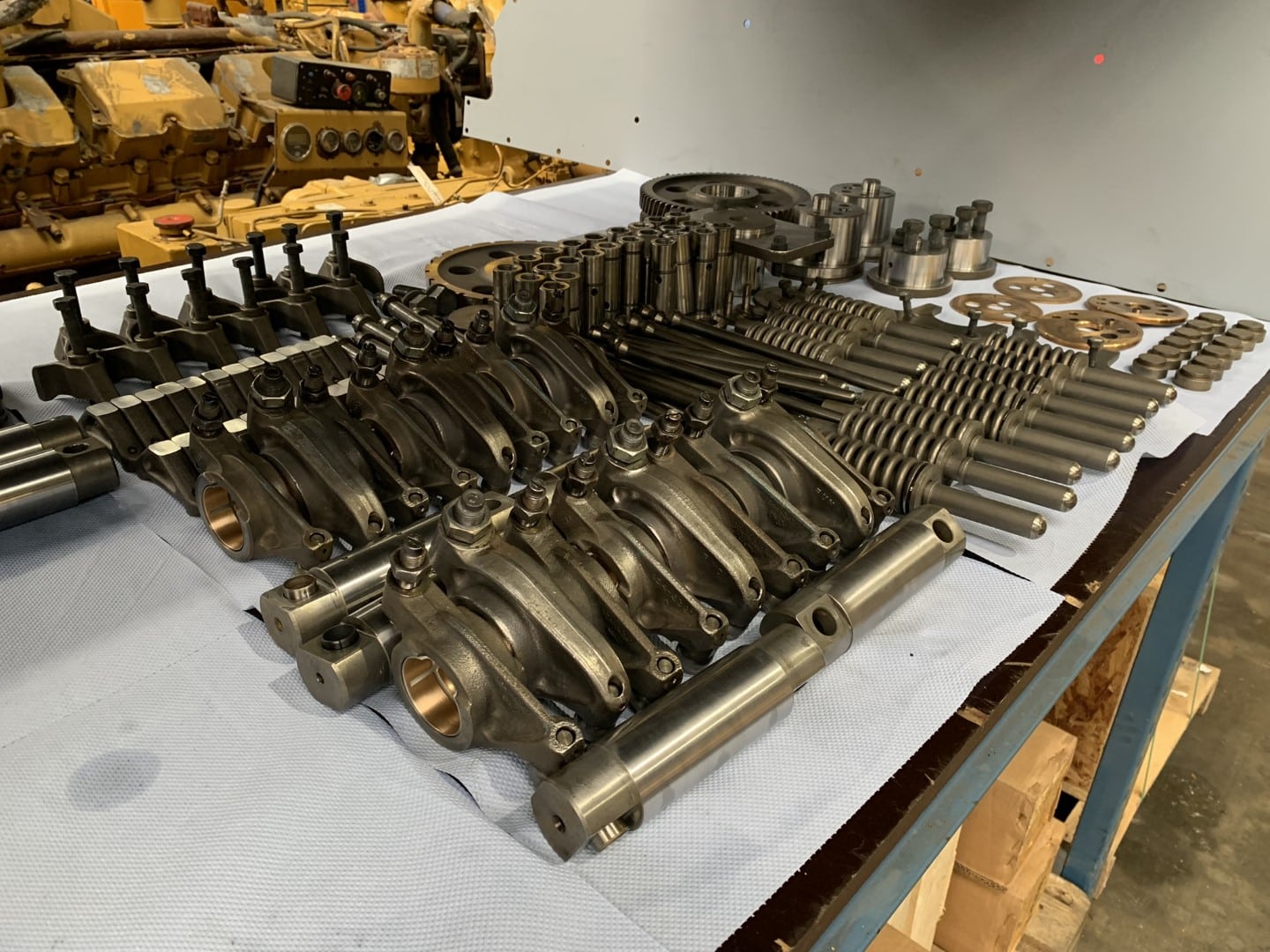

• All intake and exhaust valves removed, inspected, and lapped
• Valve seats resurfaced for perfect sealing
• Fuel injectors cleaned, tested, and calibrated to OEM specifications
• Valve timing confirmed to Caterpillar standards

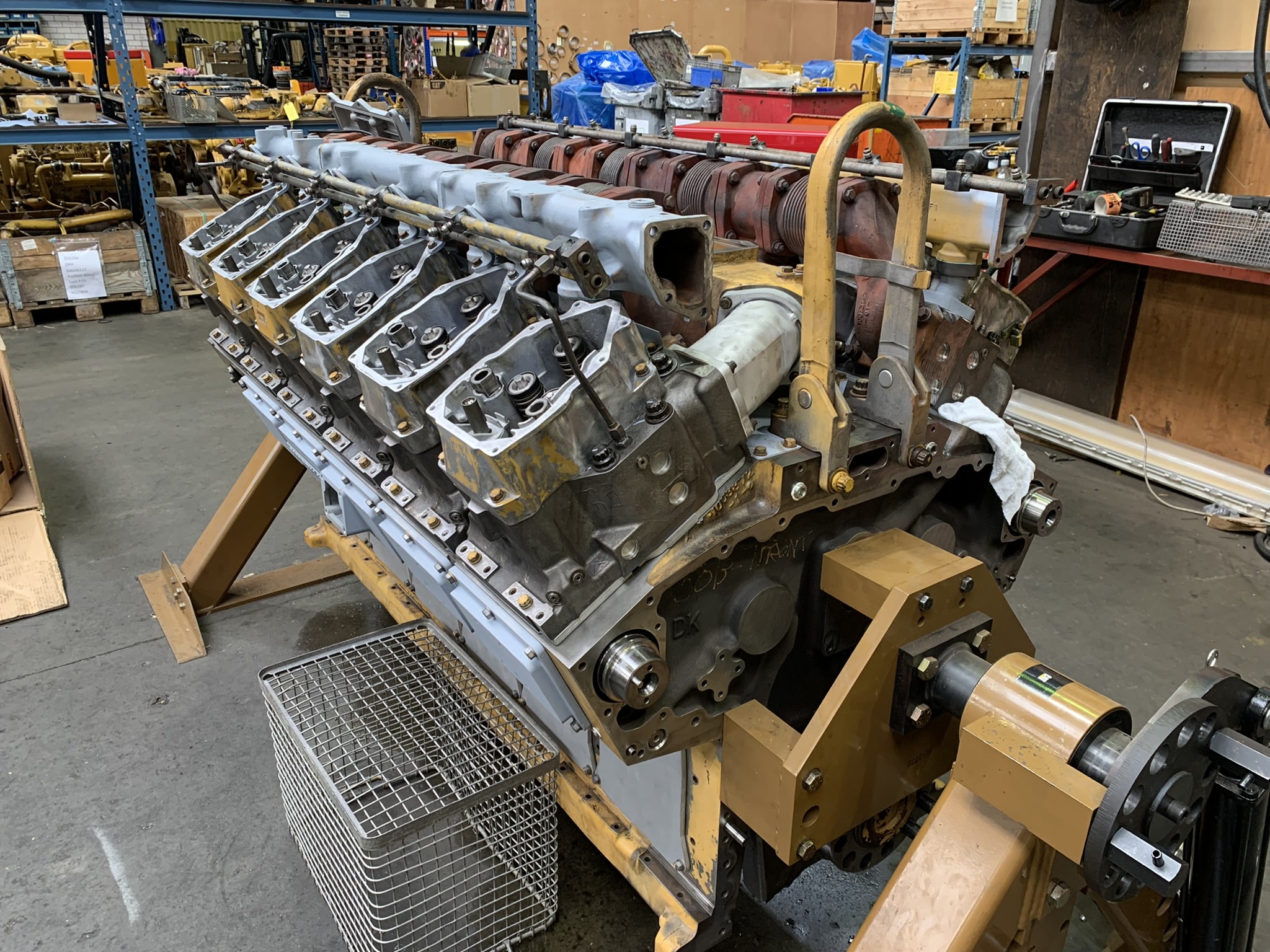

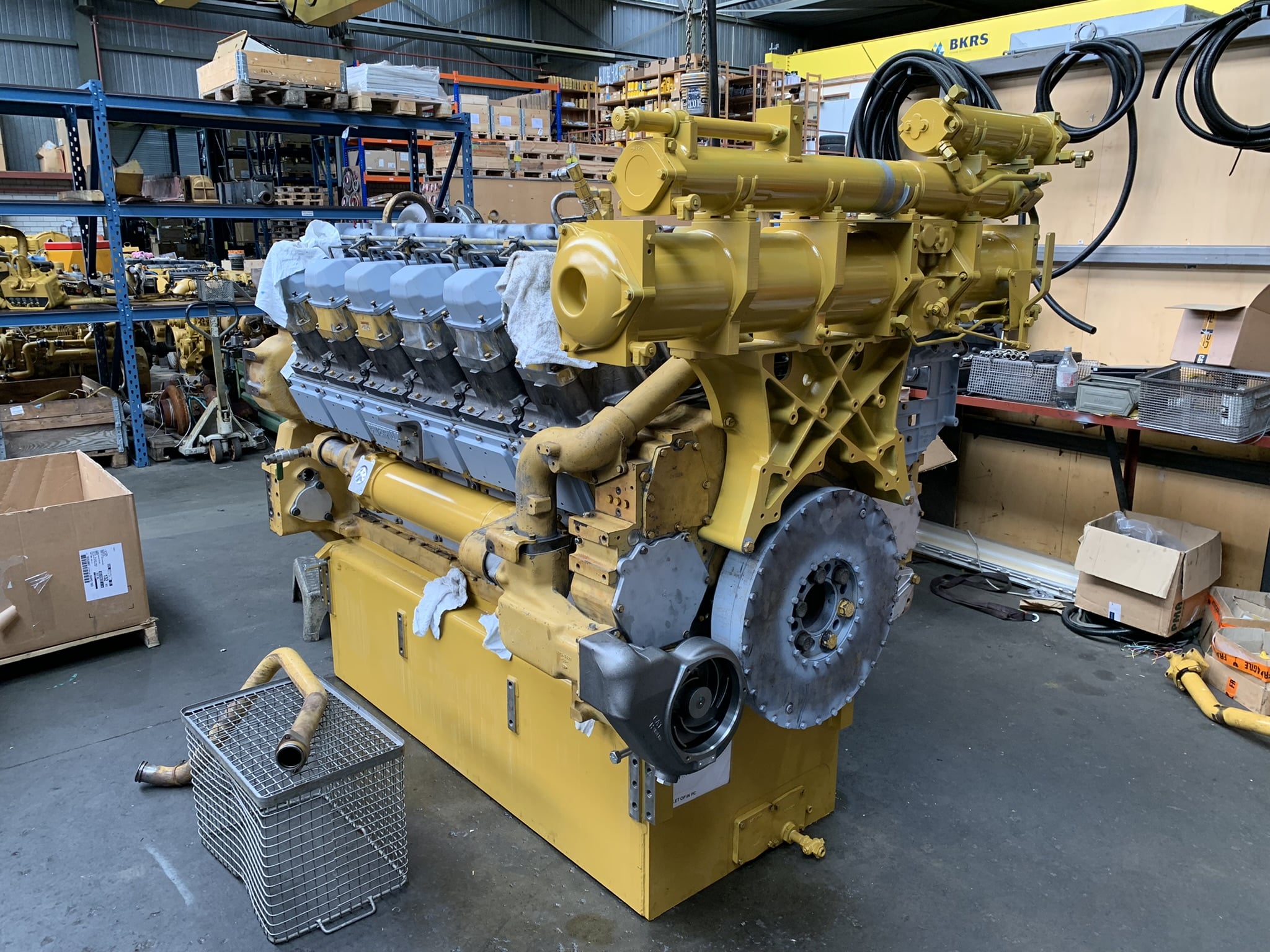

Step 5: Reassembly to Caterpillar Standards Every component was reassembled according to Caterpillar engineering drawings:

• Precision torque sequencing on all critical fasteners
• Valve clearances set and verified
• Fuel pump timing confirmed
• All gaskets and seals replaced with genuine Caterpillar parts

Step 6: Classification Society Inspection The rebuilt long block was inspected and certified by the vessel’s classification society (DNV, Lloyd’s, ABS, or equivalent), ensuring compliance with marine regulations and international standards.

Step 7: Quality Assurance Testing

• Compression test (verifies piston ring sealing)
• Cranking load verification (bearing clearances)
• Oil pressure test (bearing condition)
• Visual final inspection (cleanliness, assembly quality)

The Results

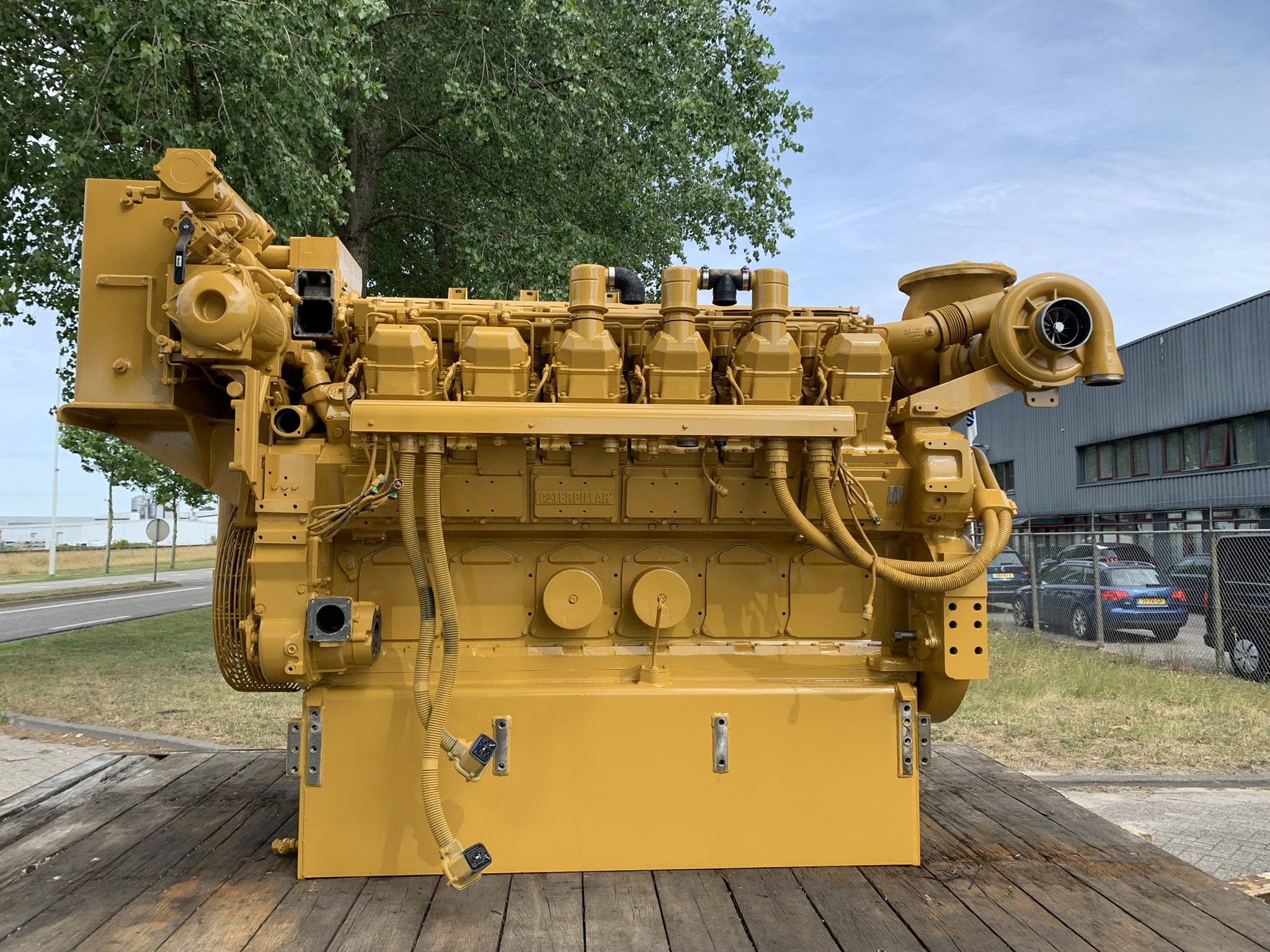

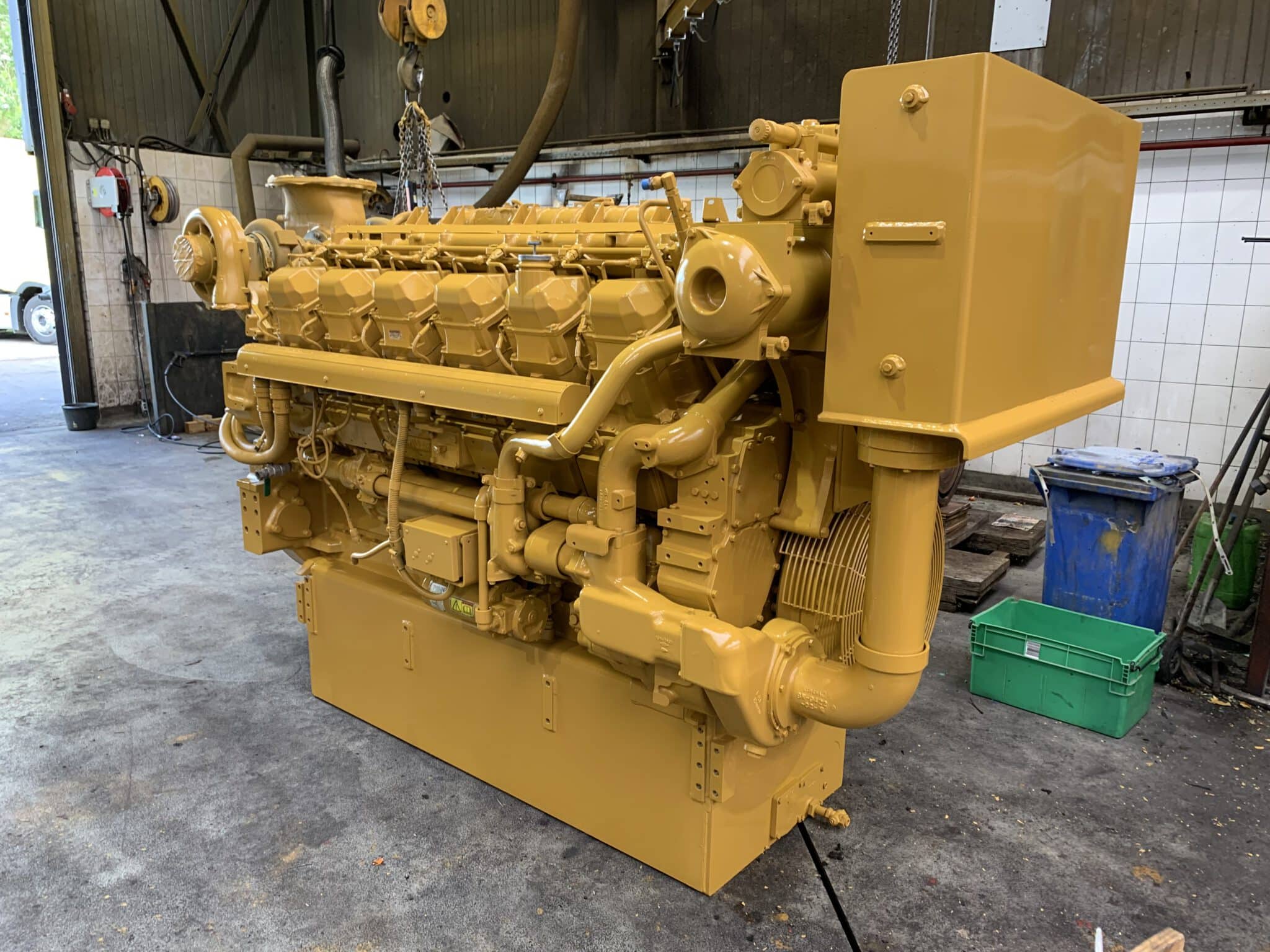

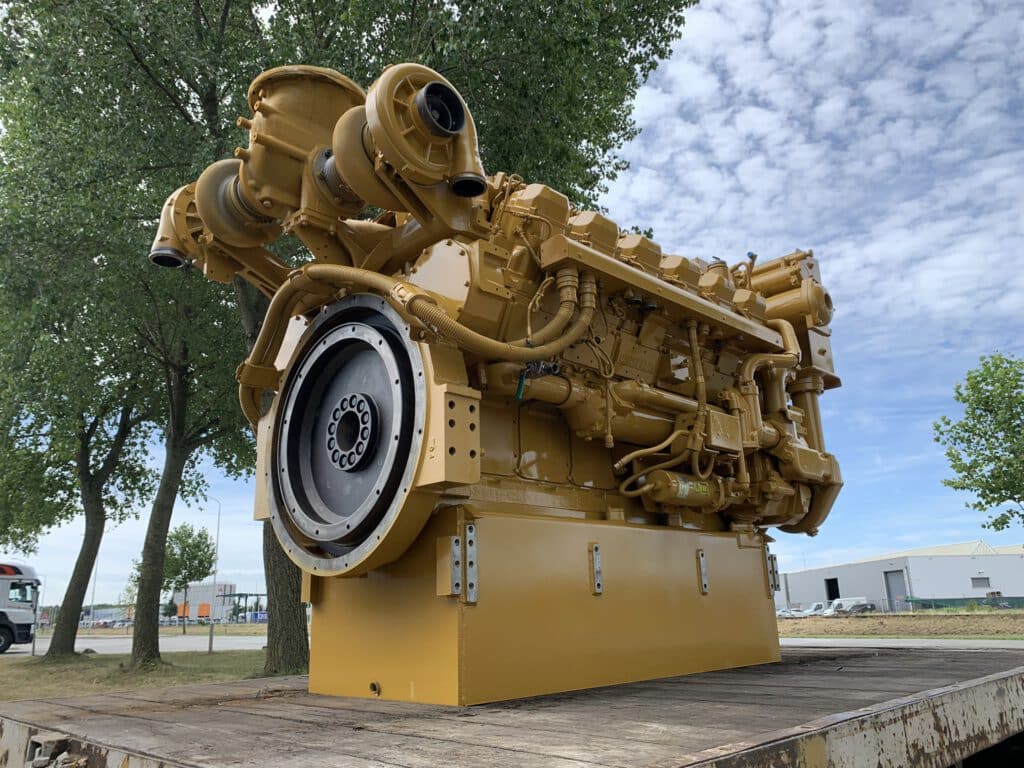

Caterpillar Yellow Paint — The long block was finished in iconic Caterpillar Yellow, meeting DPH’s exacting aesthetic and quality standards.

Classification Approved — The rebuilt long block carried full classification society approval, acceptable worldwide for marine operations.

Ready to Reinstall — The long block was crated, shipped, and delivered to the vessel within weeks. Installation by the ship’s engineers was straightforward — bolt the long block in, reconnect the external systems, and run sea trials.

Why This Solution Was Perfect for This Situation

Speed Saves Money

A vessel earning $50,000–$100,000+ per day cannot afford months of downtime. The long block solution cut repair time from 12–16 weeks to 4–6 weeks — saving the operator hundreds of thousands in lost earnings.

Cost Efficiency Without Compromise

A new Caterpillar 3512C HD engine costs $400,000–$600,000. A complete overhaul is $150,000–$200,000. This long block rebuild was 40–50% cheaper than full overhaul, while delivering core component renewal (the most critical aspect for reliability).

Reusing What Works

The vessel’s external components — turbocharger, alternator, cooling systems — were still functional. Why replace them? By reusing proven external hardware and focusing on the core engine block, the customer got maximum value.

Full Classification Approval

This wasn’t a field repair or jury-rigged fix. The long block was rebuilt to Caterpillar specifications and approved by the vessel’s classification society. The repair met international maritime regulations and insurance requirements.

Engineering Expertise

Diesel Power Holland’s technical team had the expertise to evaluate the failure, prescribe the right solution, and execute the rebuild with precision. Not all repair shops understand the nuances of long block engineering.

The Outcome: Back to Sea in Weeks

Thanks to the long block solution, the vessel was able to:

1. Resume operations quickly
2. Meet contractual obligations
3. Avoid catastrophic downtime costs
4. Maintain full engine reliability for years to come

The customer got their vessel back to sea with a rebuilt engine core that meets all classification and regulatory standards, and saved 50% of the cost and time compared to alternatives.

Long Block FAQs

What’s the difference between a long block and a short block?

A short block includes the block, crankshaft, and pistons only. A long block adds cylinder heads, valves, manifolds, and other top-end components. For marine applications, a long block offers better value and reliability.

Can a long block be installed by our crew?

Installation requires licensed marine engineers with proper tools. DPH can provide technical documentation and support, but installation is your crew’s responsibility. Typical installation takes 2–3 days.

How long does a rebuilt long block last?

A properly-rebuilt long block typically delivers 10,000–15,000+ additional operating hours, equivalent to 3–5 years of continuous ocean operation.

Is a long block approved for international classification?

Yes, when built and certified by a qualified facility (like DPH) under classification society approval, a long block meets all international maritime regulations.

Can you ship a long block quickly?

Yes. Once the rebuild is complete and classified, we arrange rapid international shipping. Typical delivery to African ports: 2–3 weeks from completion.

What if we also need to replace the turbocharger or external components?

We can handle that as well. Contact us for a comprehensive assessment, we’ll recommend the most cost-effective solution.
